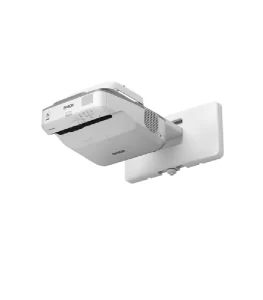

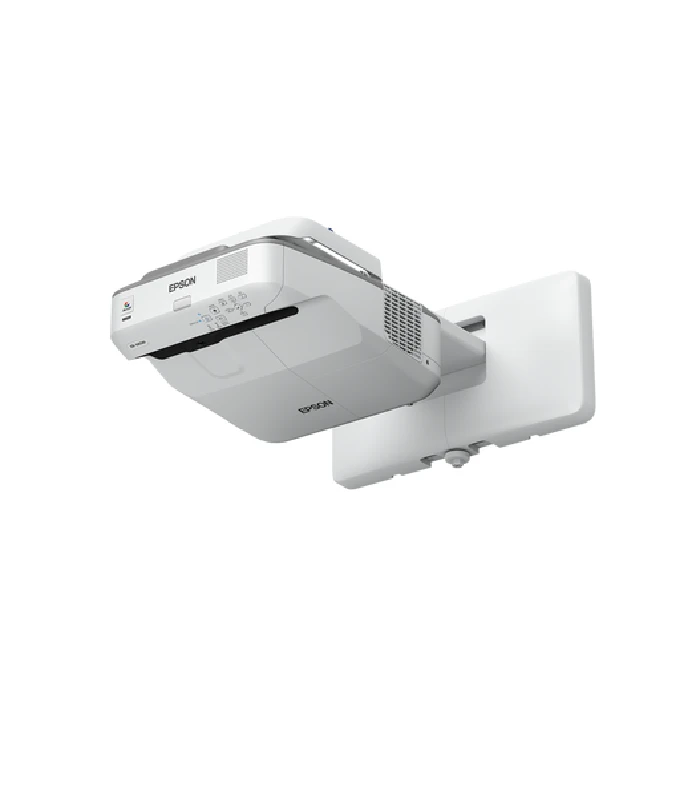

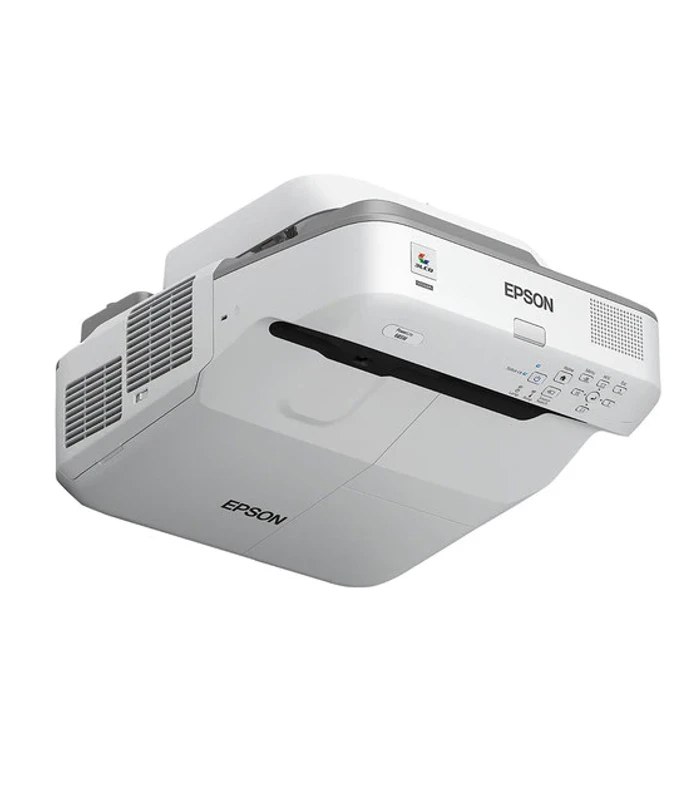

Epson EB‐685W WXGA Ultra Short-Throw Projector
Ask for more info
Epson EB‐685W WXGA Ultra Short-Throw Projector Features:
- Up to 100-inch display and outstanding quality: HD-ready WXGA resolution with Epson 3LCD technology
- Reliable: Improved reliability and a longer lamp life
- Wireless Connectivity (Optional): Allows content to be shown from a range of devices
- Long lamp life: Up to 10,000 hours in eco mode
- Ultra short throw projection: For maximum installation flexibility
Description
Epson EB‐685W WXGA Ultra Short-Throw Projector Description
Epson EB‐685W WXGA Ultra Short-Throw Projector allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.
What’s In The Box:
Supplied Accessories
Power Cable: 4.5m
Remote Control with Battery Attached
Setting Plate
Password Protect Sticker
Optional Accessories
Spare Lamp: ELPLP91
Air Filter: ELPAF49
Wireless LAN Unit: ELPAP10
Setting Plate: ELPMB46 / ELPMB43 / ELPMB28
Table Mount Bracket: ELPMB29
Specifications:
- Projection System
3LCD Technology
- LCD Panel
0.59 inch with D9
-
Colour Light Output
3,500 Lumen- 2,900 Lumen (economy) in accordance with IDMS15.4White Light Output
3,500 Lumen – 2,900 Lumen (economy) in accordance with ISO 21118:2012Resolution
WXGA, 1280 x 800, 16:10High Definition
HD readyAspect Ratio
16:10Contrast Ratio
14,000 : 1Light source
LampLamp
250 W, 5,000 h durability, 10,000 h durability (economy mode), 9,000 h durability (economy mode)Keystone Correction
Manual vertical: ± 3 °, Manual horizontal ± 3 °Colour Processing
10 Bits2D Vertical Refresh Rate
100 Hz – 120 HzColour Reproduction
upto 1.07 billion colours -
Optical
Projection Ratio
0.28 – 0.37:1Zoom
Digital, Factor: 1 – 1.35Lens
OpticalImage Size
60 inches – 100 inchesProjection Distance Wide
0.4 m ( 60 inch screen)Projection Distance Tele
0.6 m ( 100 inch screen)Projection Lens F Number
1.6Focal Distance
3.7 mmFocus
ManualOffset
5.8 : 1 -
Connectivity
USB Display Function
3 in 1: Image / Mouse / SoundInterfaces
USB 2.0 Type A, USB 2.0 Type B, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Wired Network, Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional), VGA in (2x), VGA out, MHLEpson iProjection App
Ad-Hoc / Infrastructure -
Advanced Features
-
General
Energy Use
354 Watt, 309 Watt (economy), 0.37 Watt (standby)Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 HzProduct dimensions
367 x 400 x 149 mm (Width x Depth x Height)Product weight
5.7 kgNoise Level
Normal: 35 dB (A) – Economy: 30 dB (A) – Eco2: 29 dB (A)Temperature
Operation 5° C – 40° C, Storage -10° C – 60° CHumidity
Operation 20% – 80%, Storage 10% – 90%Included Software
Epson Projector Management Software, EasyMP Multi PC ProjectionOptions
Air filter, Connection and control box, Document camera, External Speaker, USB extension cable, Wireless LAN unitCompatible Operating Systems
Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1Loudspeaker
16 WattWhat’s in the box
CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Wall hanging bracket, Warranty cardRoom Type / Application
Collaboration space / ClassroomPositioning
Wall MountedColour
White / GreyDISTRIBUTOR – UAE / OMAN / SAUDI / BAHRAIN / KUWAIT
