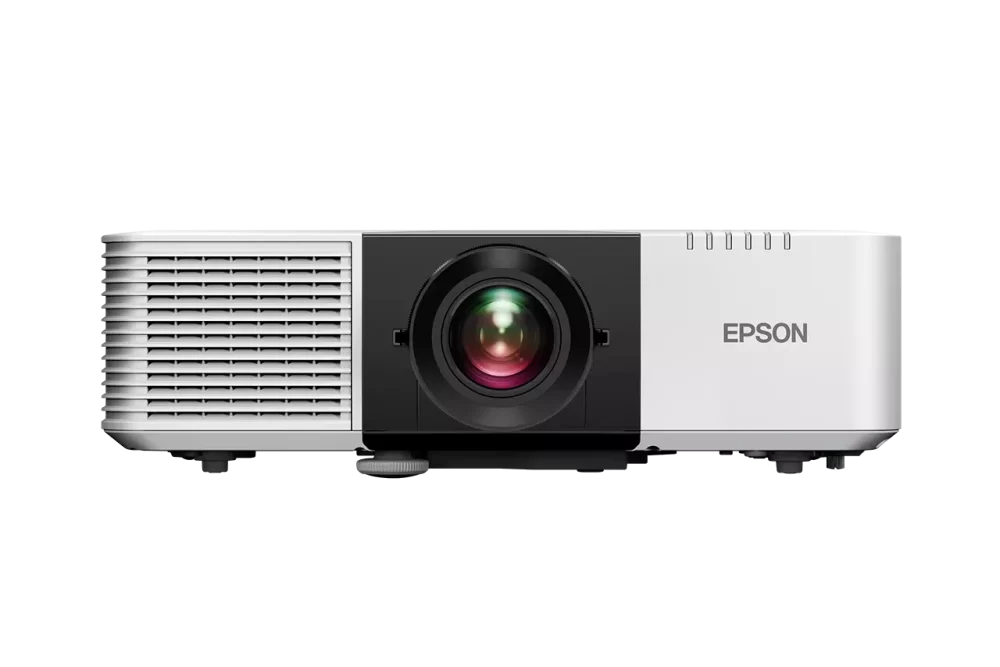

The Epson EB-L690U 6500 Lumens WUXGA 3LCD Laser Projector is a bright, eco-friendly installation solution designed for classrooms, offices, and large venues. Delivering stunning image clarity with WUXGA resolution and 4K input support, it projects up to 500 inches with vibrant colors and sharp details, even in well-lit spaces. Its flexible installation features include 1.6x optical zoom, ±50% vertical and ±20% horizontal lens shift, and multiple aspect ratios (16:10, 16:6, 21:9) to suit any setup. Built for sustainability, the EB-L690U offers a laser light source lasting up to 30,000 hours in Eco mode, reducing maintenance and energy costs. With versatile connectivity such as HDMI, HDBaseT, LAN, USB, Wi-Fi 6/6E, Miracast, and Apple AirPlay 2, plus support for Epson management tools and Crestron XiO Cloud, this projector ensures easy control, wireless collaboration, and reliable performance for professional environments.

✅ Key Features

• High Brightness Performance – 6,500 lumens with 3LCD technology for vivid, true-to-life images even in bright environments.

• Crisp Resolution – Native WUXGA (1920 x 1200) with 4K input support for sharp and detailed visuals.

• Large Screen Projection – Displays up to 500 inches with flexible aspect ratios including 16:10, 16:6, and 21:9.

• Flexible Installation – Features 1.6x optical zoom, ±50% vertical and ±20% horizontal lens shift, and a throw ratio of 1.35–2.20:1.

• Long-Lasting Laser Light Source – Up to 30,000 hours in Eco mode, reducing maintenance and operating costs.

• Advanced Connectivity – Includes HDMI, HDBaseT, LAN, USB, RS-232, plus wireless support for Wi-Fi 6/6E, Miracast, Apple AirPlay 2, and NFC.

• Smart Management & Control – Compatible with Epson Projector Management Connected (EPMC), Crestron XiO Cloud, and OTA firmware updates.

• Eco-Friendly Design – Made with recycled materials, energy-saving modes, and packaging designed for sustainability.

• Built-in Audio – Integrated 10W speaker for convenient sound without external equipment.

• Reliable Warranty – Covered by a 3-year Epson warranty for peace of mind.

? Specifications

• Projection System: 3LCD Laser

• Brightness: 6,500 lumens (Color & White)

• Resolution: WUXGA (1920 x 1200), 4K input supported

• Contrast Ratio: Up to 2,500,000:1 (Dynamic)

• Image Size: Up to 500 inches

• Aspect Ratios: 16:10 (native), 16:6, 21:9 supported

• Zoom Ratio: 1.6x optical

• Lens Shift: Vertical ±50%, Horizontal ±20%

• Throw Ratio: 1.35 – 2.20:1

• Light Source Life: Up to 30,000 hrs (Eco), 20,000 hrs (Normal)

• Connectivity: 2x HDMI in, 1x HDMI out, HDBaseT, USB-A (2), USB-B, RS-232, LAN, Audio Out

• Wireless: Wi-Fi 6/6E, Miracast, Apple AirPlay 2, NFC

• Audio: 10W built-in speaker

• Control Systems: EPMC, Crestron XiO Cloud, OTA firmware updates

• Mounting Options: 360° installation, VESA mount compatible

• Weight: Approx. 8.4 kg
