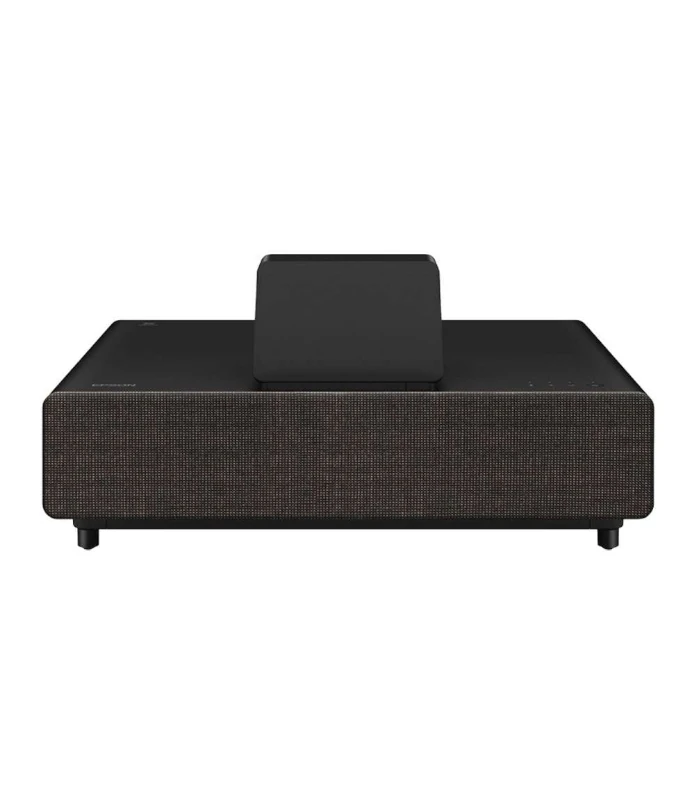

EPSON EH-LS500B Android TV Edition Smart 4K UST projector

EPSON EH-LS500B Android TV Edition Smart 4K UST projector

1 – 4K Enhancement Technology shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode.

2 – Subscriptions may be required for certain content providers.

3 – Follow the directions onscreen to complete the set up.

4 – Casting optimised for selected services only. Streaming quality for other content might vary. Supported operating systems and devices: Android 2.3 and higher, iOS® 7 and higher, Windows ® 7 and higher, Mac OS® 10.7 and higher and Chrome OS (version 38 or higher). Google, Android and Android TV are trademarks of Google LLC.

5 – Based on watching content for five hours every day with the projector set in Eco mode.

Description

EPSON EH-LS500B Android TV Edition Smart 4K UST projector

1 – 4K Enhancement Technology shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode.

2 – Subscriptions may be required for certain content providers.

3 – Follow the directions onscreen to complete the set up.

4 – Casting optimised for selected services only. Streaming quality for other content might vary. Supported operating systems and devices: Android 2.3 and higher, iOS® 7 and higher, Windows ® 7 and higher, Mac OS® 10.7 and higher and Chrome OS (version 38 or higher). Google, Android and Android TV are trademarks of Google LLC.

5 – Based on watching content for five hours every day with the projector set in Eco mode.

Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0.62 inch with C2 Fine
Color Light Output
4,000 Lumen- 1,200 Lumen (economy) In accordance with IDMS15.4
White Light Output
4,000 Lumen – 1,200 Lumen (economy) In accordance with ISO 21118:2020
Resolution
4K PRO-UHD
High Definition
4K enhancement
Aspect Ratio
16:9
Contrast Ratio
2,500,000 : 1
Light source
Laser
Laser Light source
20,000 hours Durability Eco
Keystone Correction
Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing
10 Bits
2D Vertical Refresh Rate
192 Hz – 240 Hz
3D Vertical Refresh Rate
400 Hz – 480 Hz
Colour Reproduction
Upto 1.07 billion colours
Optical
Throw Ratio
0.27 – 0.37:1
Zoom
Digital, Factor: 1 – 1.35
Lens
Optical
Screen Size
65 inches – 130 inches
Projection Distance Wide/Tele
0.4 m – 0.82 m
Projection Lens F Number
1.5
Projection Lens Focal Length
3.9 mm
Projection Lens Focus
Manual
Offset
8 : 1

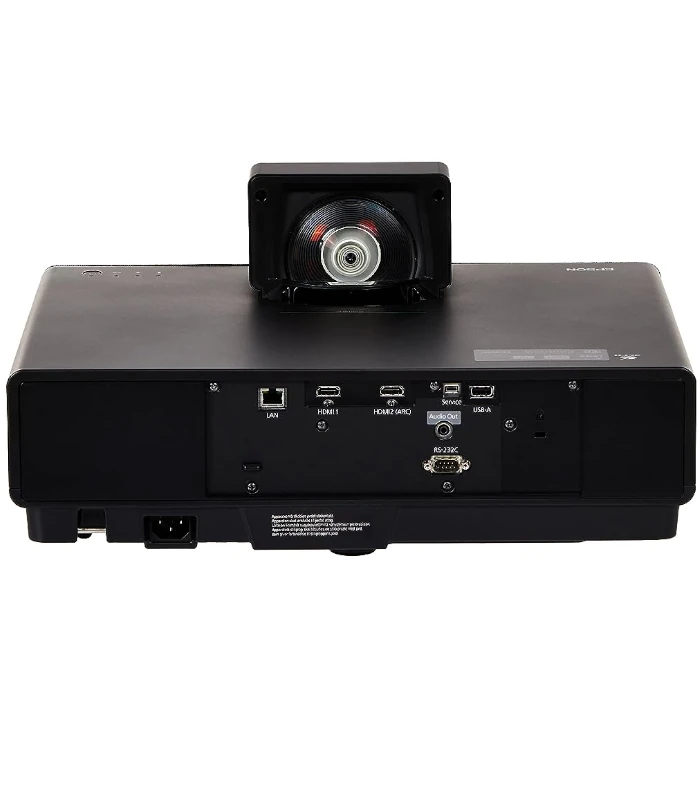

Connectivity
Interfaces
USB 1.0-A, USB 2.0 Mini-B, RS-232C, Wireless LAN b/g/g 25GHz (optional), Jack plug out, HDMI (HDCP 2.2) (3x)
Android TV
Yes
Epson iProjection App
Ad-Hoc / Infrastructure
Advanced Features
Security
Kensington lock, Security cable hole
3D
Active
2D Colour Modes
Dynamic, Cinema, Bright Cinema
3D Colour Modes
3D Dynamic, 3D Cinema
3D Supported formats
Side by side, Top and bottom
Other features
3D depth adjustment, 4K enhancement, Android TV, Automatic keystone correction, Built-in speaker, Digital zoom, Direct Power on/off, Frame interpolation, Game mode, Home Screen, Horizontal and vertical keystone correction, Long light source life, Wireless LAN capable
Video Color Modes
Cinema, Dynamic, Game, Bright Cinema
Projector control
via: AMX, Crestron, Control4
General
Power consumption
293 Watt – On mode power consumption (Normal)
366 Watt (Peak), 230 Watt (Eco), 0.5 Watt (Energy saving standby)
Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions
458‎ x 375 x 228 mm (Width x Depth x Height)
Product weight
9.3 kg
Noise Level
Normal: 37 dB (A) – Economy: 23 dB (A)
Supported Temperature
Operation 5° C – 35° C, Storage -10° C – 60° C
Supported Humidity
Operation 20% – 80%, Storage 10% – 90%
Loudspeaker
10 Watt, Stereo: Stereo
What’s in the box
Android TV dongle, CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty document
Room Type / Application
4K Gaming, 4K Streaming, Gaming, Home Cinema, Home Photo, Sports, Streaming, TV & Box sets
Positioning
Desktop, TV Cabinet
Colour
Black
