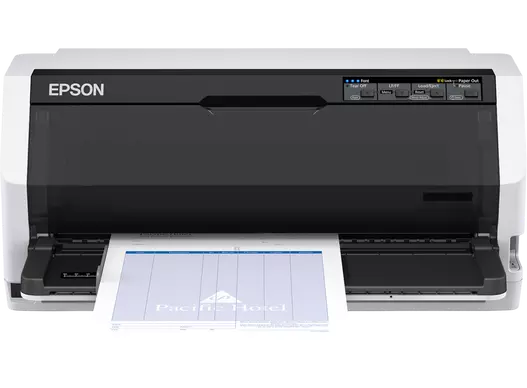

Epson LQ-690II 24-pin dot matrix printer
24-pin dot matrix printer
- High speed Impressive print speed of 487 cps (10cpi) with 1+6 copies
- Quality The 106 column capacity with 24 pins means greater quality
- Reliable Combined power of print head life and MTBF of 20,000 hours
- Modern design The black and white casing blends comfortably into any work environment
Download Catalog PDF Click here>
Description
Epson LQ-690II 24-pin dot matrix printer
Fast printing:
Print faster and more productively. The LQ-690II prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.
High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690II as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.
Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, which makes the LQ-690II ideal for any work environment. This results in greater productivity and less maintenance from down time – essential when producing large amounts of documents and data.
Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.
Awards
What is in the box?
- Driver and utilities (CD)
- Main unit
- Power cable
- Ribbon
- Setup guide
- Software (CD)
- User manual (CD)
- Warranty document
Tech Spec s
Technology
Printing Method
Impact dot matrix
Number of Pins
24 pins
Number of columns
106 columns
Pins
24 Needles
Printing Speed
HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
Barcodes
Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies
6 plus one original
Character Tables
PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Printing Resolution
360 x 180 DPI
Connectivity
Interfaces
USB 2.0, Bidirectional parallel
Paper / Media Handling
Document Feed
Single sheet front, Continuous media rear, Paper output front
Paper Formats
Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper
0.065 mm – 0.49 mm
Paper Thickness Label Base Sheet
0.16 mm – 0.19 mm
Paper Thickness Label Total Sheet
0.16 mm – 0.19 mm
Paper Thickness Multi Part
0.12 mm – 0.49 mm
Paper Thickness Single Sheet
0.065 mm – 0.15 mm
General
Power consumption
38 Watt, 3 Watt (standby)
Product dimensions
480 x 301 x 211 mm (Width x Depth x Height)
Product weight
6.8 kg
Supported Temperature
Operation 5° C – 35° C
Supported Humidity
Operation 10% – 80%
Compatible Operating Systems
Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Included Software
Epson Status Monitor
Mean Time Between Failures
20,000 hours
Print Head Life
400 Million Strokes/Wire
Noise
Operation: 59 dB (A)- Standby: 54 dB (A)
Fonts
Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H
Memory
128 kB Included
Ribbon Yield
10000000 characters Black Draft
Other Features
Emulations
ESC/P2, IBM PPDS
Other
Warranty
12 months Carry in
