The LDT02-C036 is a family of elegant aluminum LCD VESA desk mounts for 13”-21.5” monitors. The weight capability is 8kgs/17.6Ibs for each arm. Full motion structure allows maximum flexibility — extends, tilt and swivel your monitor up to 90° left and right for easy viewing. Its ball-joint structure allows smooth, effortless tilt motion for any direction, making it easy to reduce glare and find the perfect viewing angle. You can also adjust the monitor vertically to a desired position. Besides, it has a nice appearance. Cable clip is included for organizing cables. The solid aluminum arm can be extended up to 545 mm and supports up to three monitors.

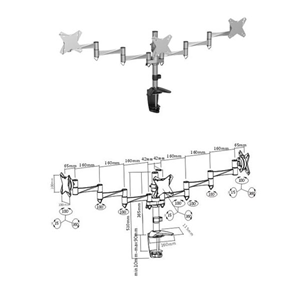

LDT02-C036 ELEGANT ALUMINUM LCD VESA DESK MOUNTS
Ask for more info
Description
FEATURES
-
●360° Rotary VESA Plate: for more viewing experience
-
●Slide-in VESA Plate: for quick attachment and detachment
-
●Integrated Ball-Joint: allows screen tilt, pan and rotation adjustment
-
●Aluminum Construction: provides a sleek, lighter, and elegant look
-
●Cable Management: keeps everything organized
-
●Easy to adjust, no tools required
-
●Two Mounting Options: both desk clamp and grommet are included
SPECIFICATION
| Product Category: | Articulating Monitor Arm |
| Rank: | Standard |
| Material: | Aluminum,Plastic,Steel |
| Surface Finish: | Chrome-Plating,Powder Coating |
| Color: | Gloss White |
| Dimensions: | 1174x115x510mm (46.2″x4.5″x20.1″) |
| Fit Screen Size: | 13″-21.5″ |
| Screen Quantity: | 3 |
| Weight Capacity (per screen): | 8kg (17.6lbs) |
| VESA Compatible: | 75×75,100×100 |
| Tilt Range: | +15°~ -15° |
| Swivel Range: | 180° |
| Screen Rotation: | 360° |
| Arm Full Extension: | 587mm (23.1″) |
| Pole Height: | 365mm (14.4″) |
| Installation: | Grommet,Clamp |
| Suggested Desktop Thickness: | Clamp：10~90mm Grommet：10~80mm (Clamp：0.39″~3.5″ Grommet：0.39″~3.1″) |
| Cable Management: | Yes |
| Anti-theft: | No |
| Instruction Manual Included: | Yes |
