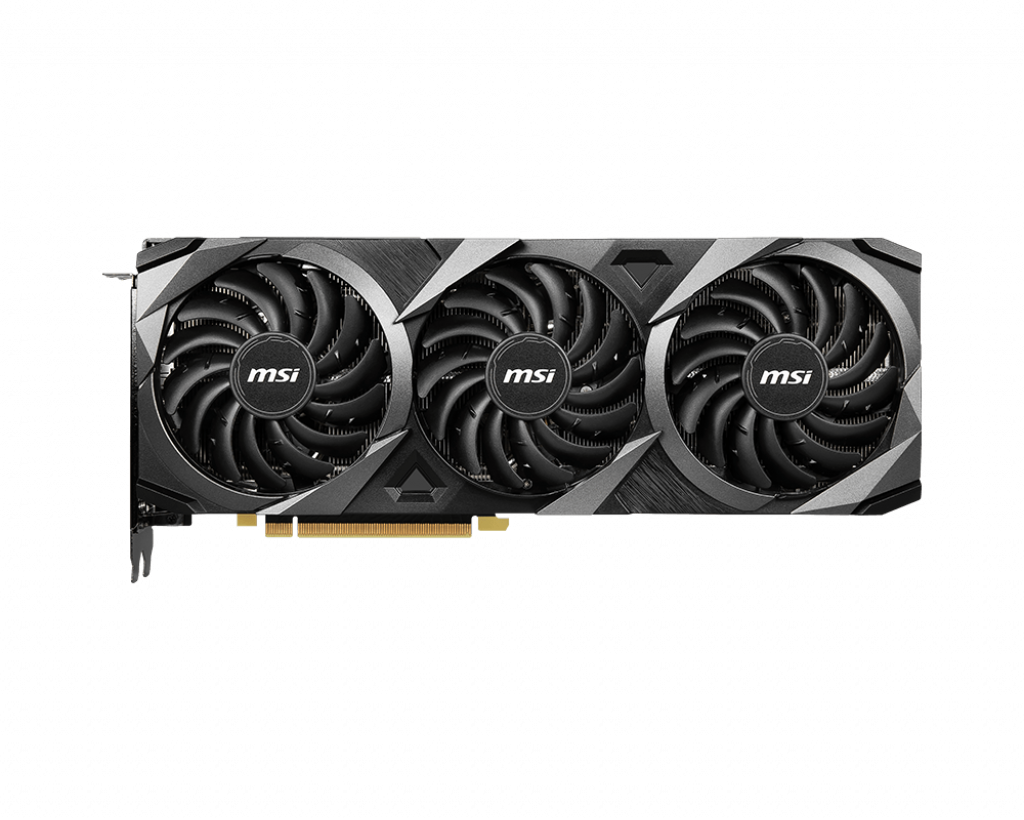

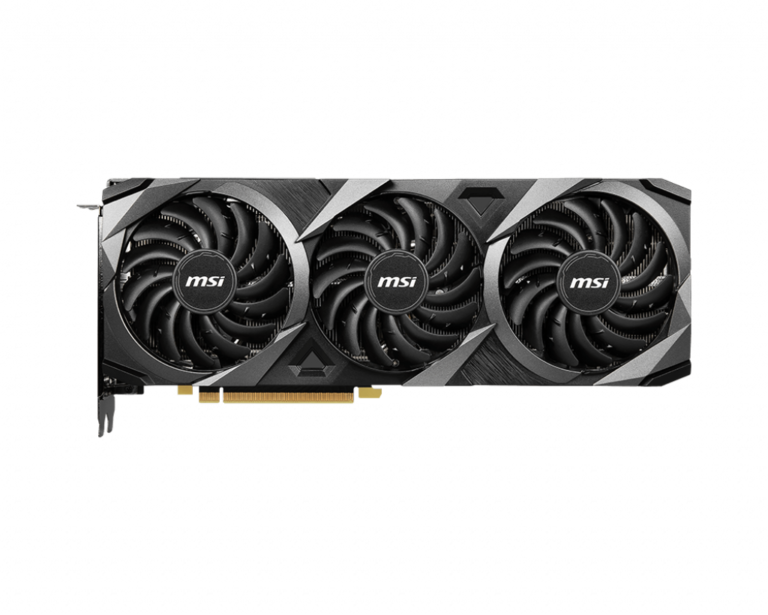

MSI GeForce RTX 3080 Ti VENTUS 3X 12G Graphic Card

The GeForce RTX™ 3080 Ti delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.

Core / Memory

• Boost Clock / Memory Speed
  1665 MHz / 19 Gbps
• 12GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

Triple Fan Thermal Design

• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
• Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.

Metal Backplate

• A sturdy brushed aluminum backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.

Core Pipe

• Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Model Name                     GeForce RTX™ 3080 Ti VENTUS 3X 12G
Graphics Processing          Unit NVIDIA® GeForce RTX™ 3080 Ti
Interface                            PCI Express® Gen 4
Cores                                 10240 Units
Core Clocks                       Boost: 1665 MHz
Memory Speed                 19 Gbps
Memory                            12GB GDDR6X
Memory Bus                     384-bit
Output                              DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP Support                  Y
Power consumption         350 W
Power connectors            8-pin x 2
Recommended PSU         750 W
Card Dimension (mm)     305 x 120 x 57 mm
Weight (Card / Package)  1379 g / 1991 g
DirectX Version Support   12 API
OpenGL Version Support  4.6
Maximum Displays            4
VR Ready                           Y
G-SYNC® technology       Y
Adaptive Vertical Sync       Y
Digital Maximum Resolution   7680 x 4320
