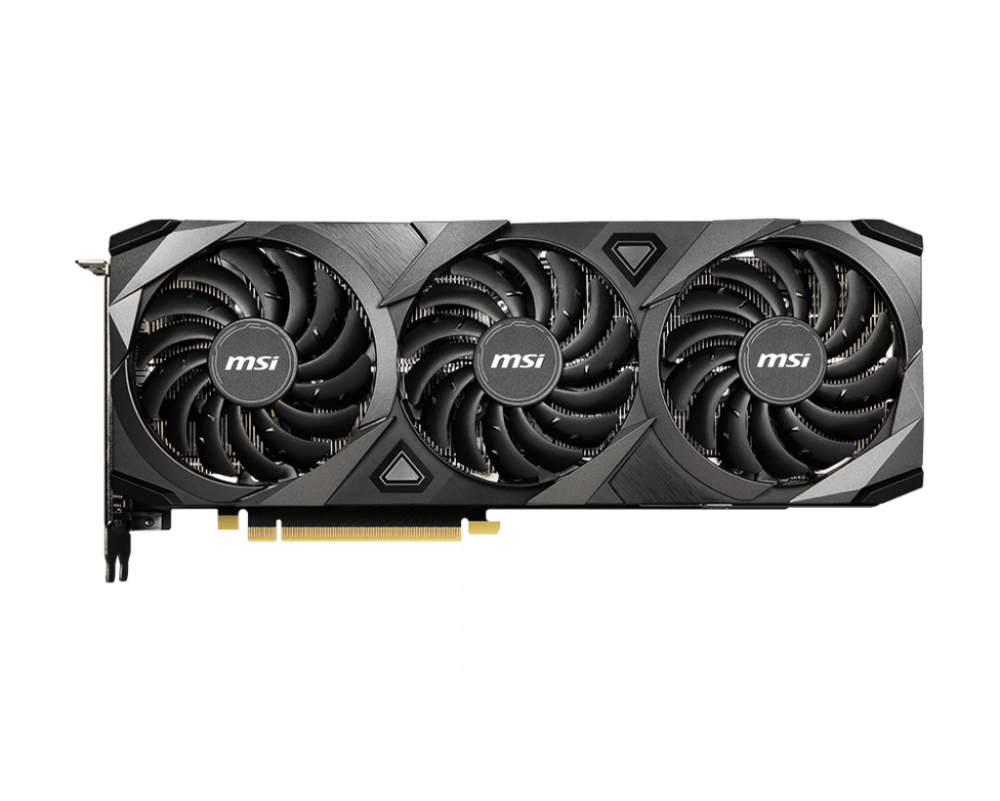

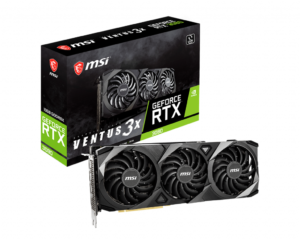

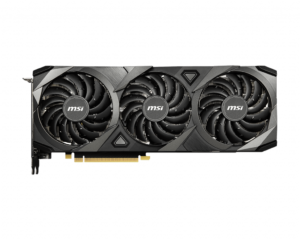

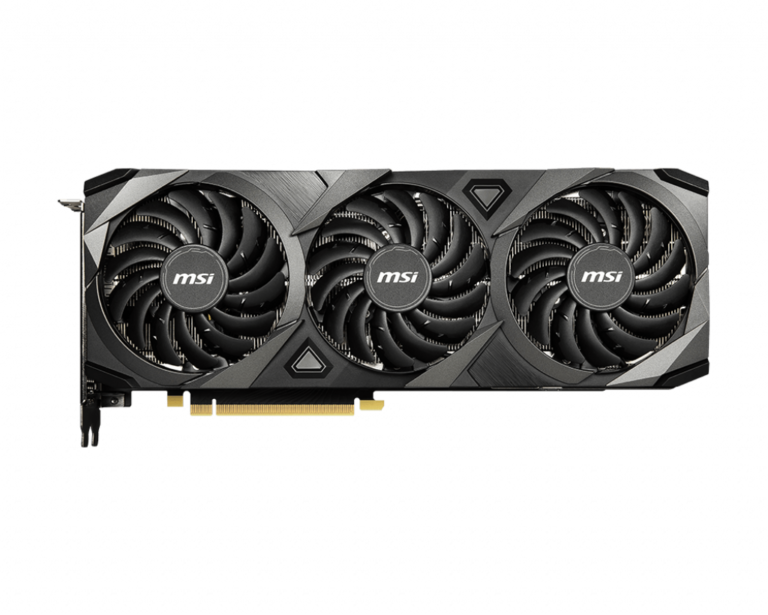

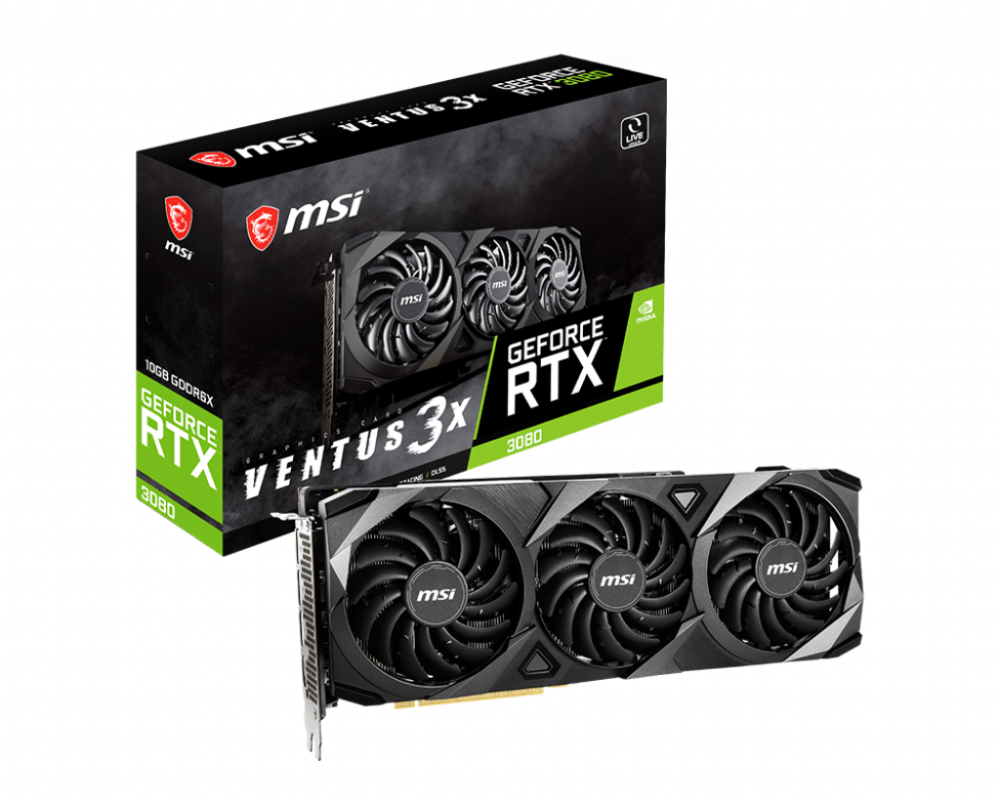

MSI GeForce RTX 3080 VENTUS 3X 10G OC LHR Graphic Card

The GeForce RTX™ 3080 delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.

• This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).

Core / Memory

• Boost Clock / Memory Speed
  1740 MHz / 19 Gbps
• 10GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

Graphene Backplate

• A composite Graphene backplate reinforces the graphics card while providing passive thermal conduction properties.

Core Pipe

• Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

Triple Fan Thermal Design

• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
• Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

Model Name                                       GeForce RTX™ 3080 VENTUS 3X 10G OC LHR
Graphics Processing Unit                NVIDIA® GeForce RTX™ 3080
Interface                                             PCI Express® Gen 4
Cores                                                   8704 Units
Core Clocks                                       Boost: 1740 MHz
Memory Speed                                 19 Gbps
Memory                                             10GB GDDR6X
Memory Bus                                     320-bIt
Output                                               DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP Support                                 Y
Power consumption                        320W
Power connectors                            8-pin x 2
Recommended PSU                        750W
Card Dimension (mm)                   305 x 120 x 57 mm
Weight (Card / Package)               1370g / 1986g
DirectX Version Support               12 API
OpenGL Version Support              4.6
Maximum Displays                         4
VR Ready                                          Y
G-SYNC® technology                    Y
Adaptive Vertical Sync                   Y
Digital Maximum Resolution     7680×4320
