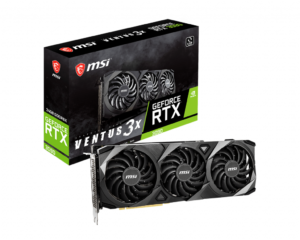

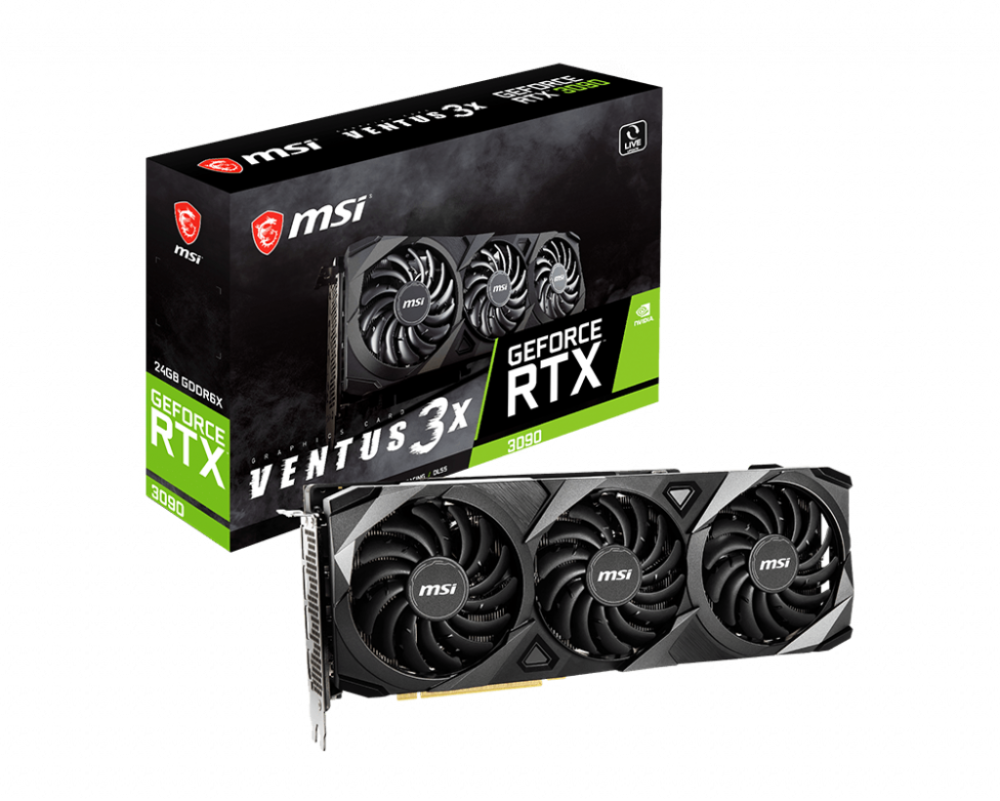

MSI GeForce RTX 3090 VENTUS 3X 24G Graphic Card

The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.

Core / Memory

• Boost Clock / Memory Speed
  1695 MHz / 19.5 Gbps
• 24GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

Metal backplate with heatpipes

• Heatpipes beneath the sturdy brushed metal backplate provide additional cooling for the memory modules on the rear of the PCB

Core Pipe

• Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

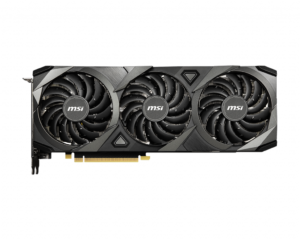

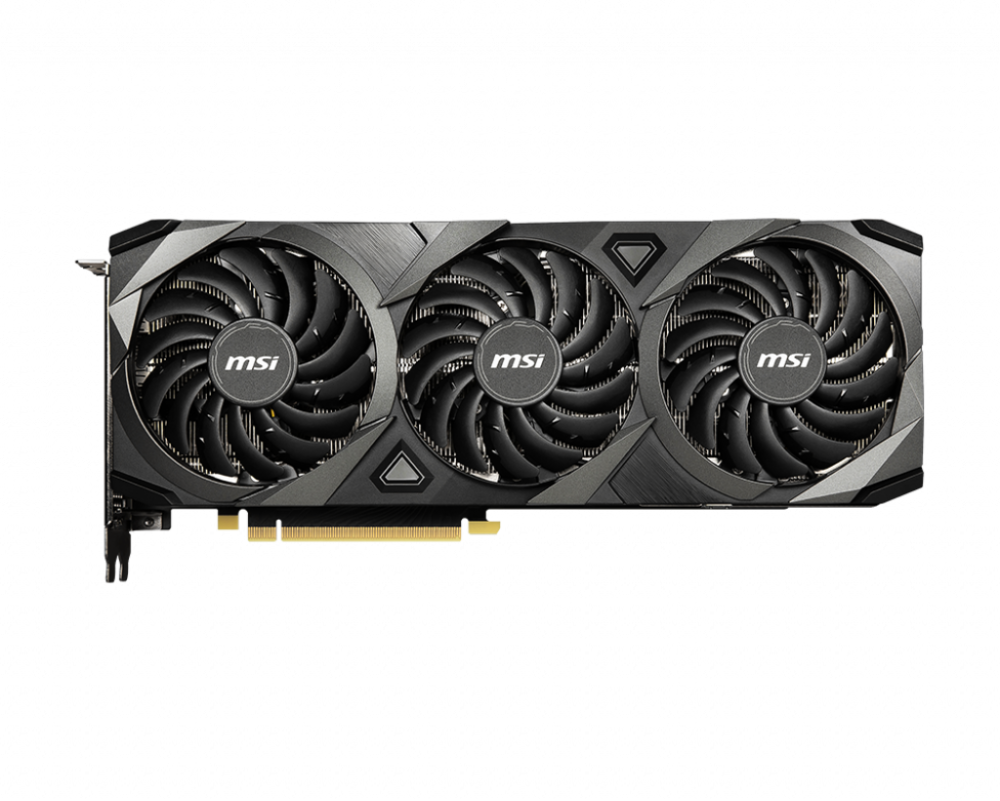

Triple Fan Thermal Design

• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
• Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

Model Name                                    GeForce RTX™ 3090 VENTUS 3X 24G
Graphics Processing Unit             NVIDIA® GeForce RTX™ 3090
Interface                                           PCI Express® Gen 4
Cores                                                 10496 Units
Core Clocks                                      Boost: 1695 MHz
Memory Speed                                19.5 Gbps
Memory                                            24GB GDDR6X
Memory Bus                                   384-bit
Output                                             DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP Support                               Y
Power consumption                      350W
Power connectors                          8-pin x 2
Recommended PSU                      750W
Card Dimension (mm)                305 x 120 x 57 mm
Weight (Card / Package)            1387g / 2004g
DirectX Version Support            12 API
OpenGL Version Support           4.6
NVLink Support                            Y
Multi-GPU Technology               Y
Maximum Displays                      4
VR Ready                                       Y
G-SYNC® technology                 Y
Adaptive Vertical Sync               Y
Digital Maximum Resolution    7680×4320
