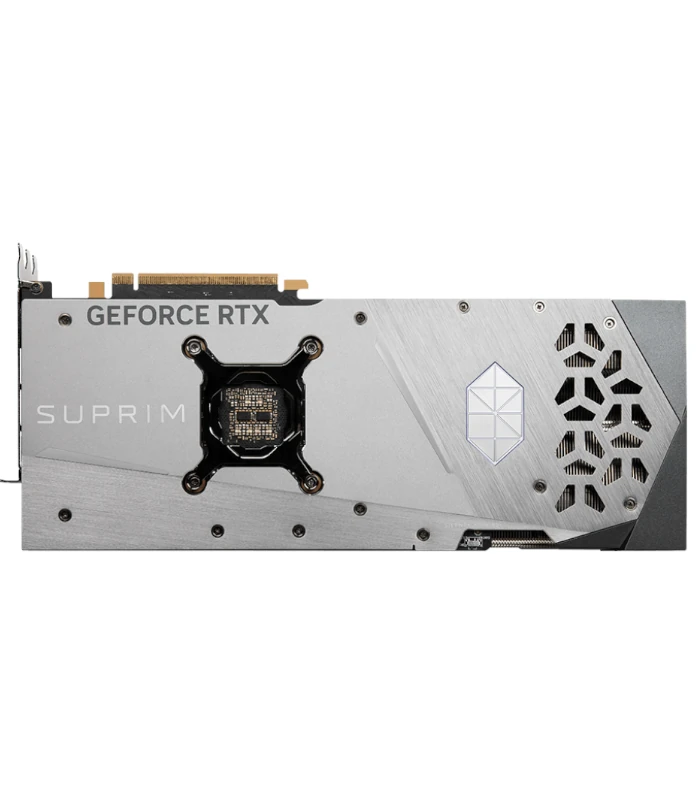

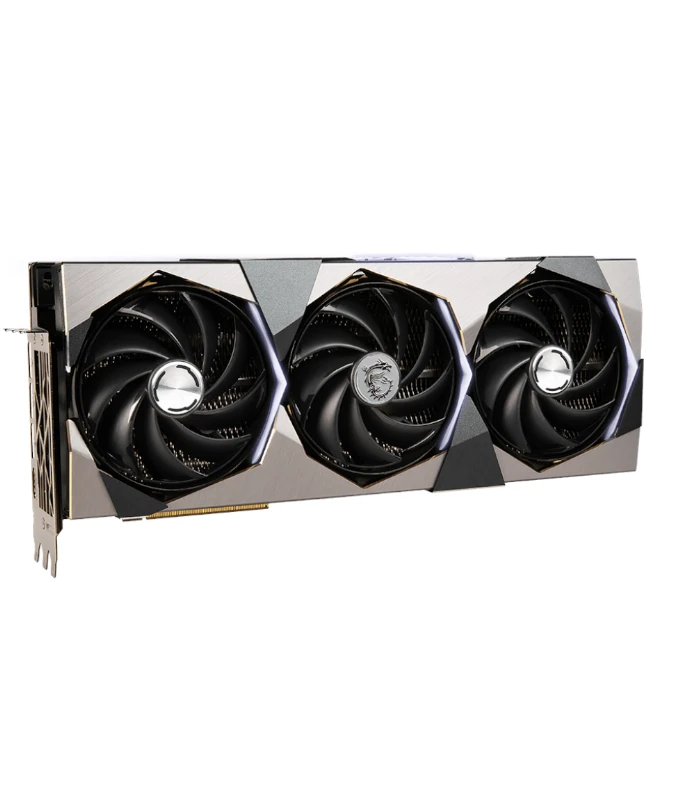

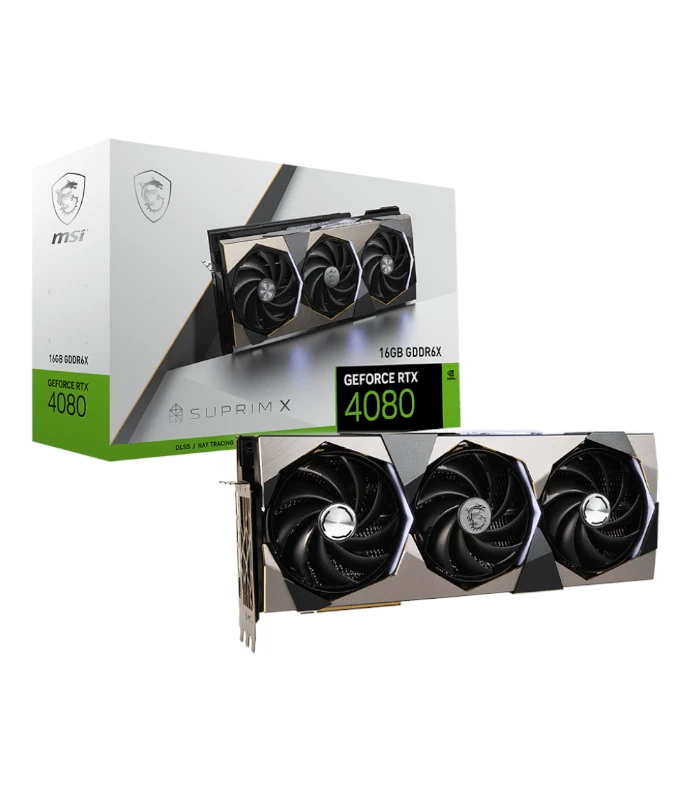

MSI GeForce RTX™ 4080 16GB SUPRIM X Graphic Card

MSI GeForce RTX™ 4080 16GB SUPRIM X Graphic Card

PCI Express® Gen 4
Extreme Performance: 2640 MHz (MSI Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
9728 Units
22.4 Gbps
16GB GDDR6X
256-bit
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

Description

MSI GeForce RTX™ 4080 16GB SUPRIM X Graphic Card

GeForce RTX™ 4080 16GB SUPRIM X

WITH DLSS 3

The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.

Boost Clock / Memory Speed
  • Extreme Performance: 2640 MHz (MSI Center)
    Boost: 2625 MHz (GAMING & SILENT Mode)
    22.4 Gbps
  • 16GB GDDR6X
  • DisplayPort x 3 (v1.4a)
    HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

TRI FROZR 3S Thermal Design

  • TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
  • VAPOR CHAMBER: The GPU and memory modules are covered with a Vapor Chamber which rapidly transfers heat to Core Pipes.
  • Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
  • Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Dual BIOS

  • Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

MSI Center

  • The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Mystic Light

  • Controls lighting for both MSI and compatible third-party RGB products.
Model Name

GeForce RTX™ 4080 16GB SUPRIM XBoost: 2625 MHz (GAMING & SILENT Mode)

Graphics Processing Unit

NVIDIA® GeForce RTX™ 4080 16GB

Interface

PCI Express® Gen 4

Core Clocks

Extreme Performance: 2640 MHz (MSI Center)

CUDA® CORES

9728 Units

Memory Speed

22.4 Gbps

Memory

16GB GDDR6X

Memory Bus

256-bit

Output

DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP Support

Y

Power consumption

320 W

Power connectors

16-pin x 1

Recommended PSU

850 W (Min.750 W)

Card Dimension (mm)

336 x 142 x 78 mm

Weight (Card / Package)

2364g / 3565g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC® technology

Y

Digital Maximum Resolution

7680 x 4320
