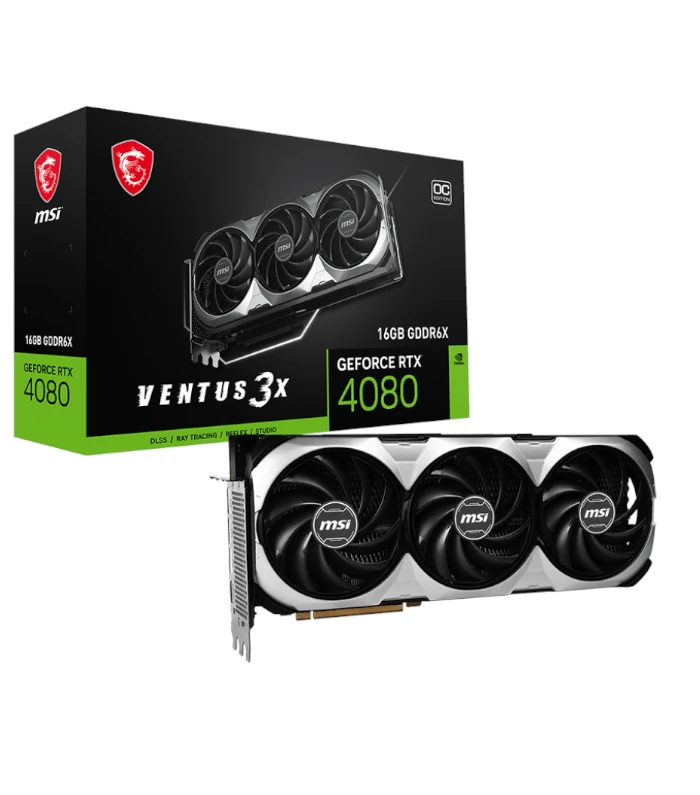

MSI GeForce RTX™ 4080 16GB VENTUS 3X OC Graphic Card

MSI GeForce RTX™ 4080 16GB VENTUS 3X OC Graphic Card

PCI Express® Gen 4
Extreme Performance: 2550 MHz (MSI Center)
Boost: 2535 MHz
9728 Units
22.4 Gbps
16GB GDDR6X
256-bit
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

Description

MSI GeForce RTX™ 4080 16GB VENTUS 3X OC Graphic Card

GeForce RTX™ 4080 16GB VENTUS 3X OC

WITH DLSS 3

The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.

Boost Clock / Memory Speed

  • Extreme Performance: 2550 MHz (MSI Center)
    Boost: 2535 MHz
    22.4 Gbps
  • 16GB GDDR6X
  • DisplayPort x 3 (v1.4a)
    HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

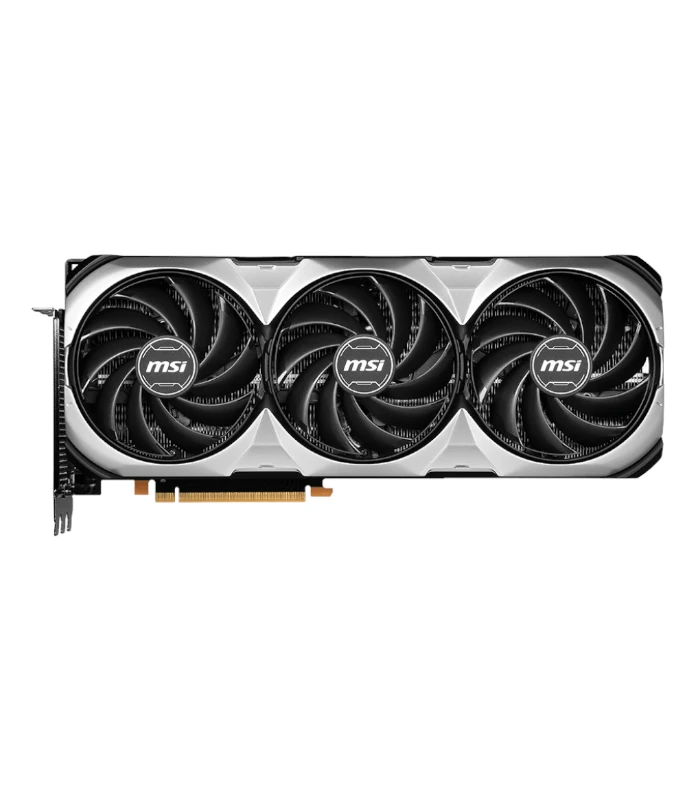

Triple Fan Thermal Design

  • TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
  • Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
  • Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
  • Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

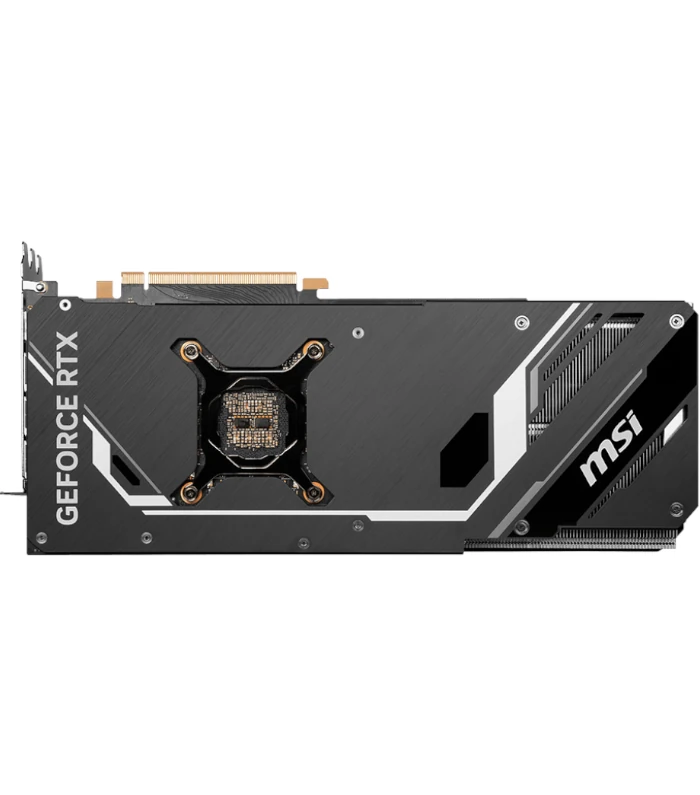

Metal Backplate

  • Thermal pads under the sturdy flow-through metal backplate helps with cooling.

MSI Center

  • The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Model Name

GeForce RTX™ 4080 16GB VENTUS 3X OC

Graphics Processing Unit

NVIDIA® GeForce RTX™ 4080 16GB

Interface

PCI Express® Gen 4

Core Clocks

Extreme Performance: 2550 MHz (MSI Center)Boost: 2535 MHz

CUDA® CORES

9728 Units

Memory Speed

22.4 Gbps

Memory

16GB GDDR6X

Memory Bus

256-bit

Output

DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP Support

Y

Power consumption

320W

Power connectors

16pin x 1

Recommended PSU

750W

Card Dimension (mm)

322 x 136 x 63mm

Weight (Card / Package)

1595g / 2200g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC® technology

Y

Digital Maximum Resolution

7680 x 4320
