MSI MAG FORGE 100R GAMING COMPUTER CASE
Ask for more info
MSI MAG FORGE 100R GAMING COMPUTER CASE
- MSI MAG Forge 100R chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A
- Optimize Airflow
- ARGB Fan included
- 4mm Tempered Glass
- 330 mm Radiator Support
- 160 mm CPU Cooler Support
Description
MSI MAG FORGE 100R GAMING COMPUTER CASE
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.
Support
ATX / Micro ATX / Mini-ITX
The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.
The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.Customizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.
| Product Name |
MAG FORGE 100R |
| Form Factor |
Mid-Tower |
| Motherboard Form Factor Support |
ATX / Micro-ATX / Mini-ITX |
| I/O Ports |
2 x USB 3.2 Gen1 Type-A (5 Gbps) 1 x Audio-out 1 x Mic-in |
| Drive Mount Support |
3 x 2.5” / 2 x 3.5” |
| Expansion Slots |
7 |
| Maximum GPU Length |
330 mm / 13 inches |
| Maximum CPU Cooler Height |
160 mm / 6.3 inches |
| Power Supply Support |
ATX |
| Maximum PSU Length |
200 mm / 7.87 inches |
| Fan Size Support |
Front: 3 x 120 mm / 2 x 140 mm Top: 2 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm |
| Pre-installed Fan Size |
Front: 2 x 120 mm Rear: 1 x 120 mm |
| Pre-installed Fan Type |
Front: 2 x ARGB Fan Rear: 1 x Non LED Fan |
| Radiator Size Support | Front: 120 / 140 / 240 mm Top: 120 / 240 mm Rear: 120 mm |
| Dimensions (DxWxH) |
421 x 210 x 499 mm / 17.05 x 8.27 x 19.65 inches |
| Net Weight |
5.64 kg / 12.43 lbs |
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

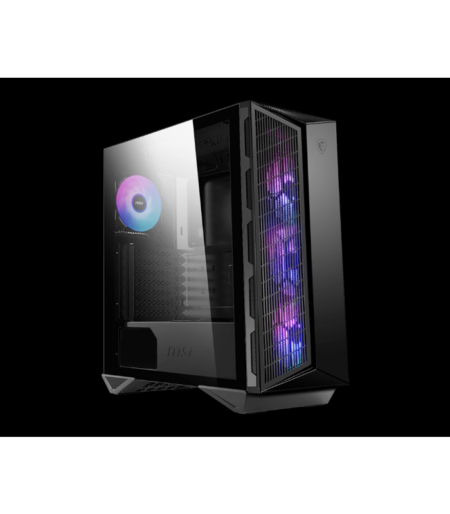

MSI MPG GUNGNIR 111R GAMING COMPUTER CASE
