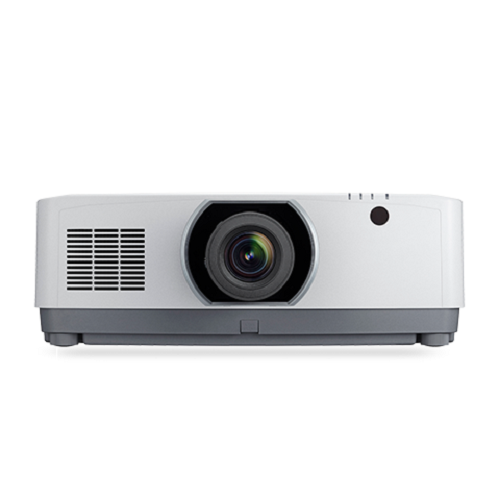

NEC NP-PA653UL PROJECTOR + NP41ZL Lens Professional Laser Projector

NEC NP-PA653UL PROJECTOR + NP41ZL Lens Professional Laser Projector

NEC NP-PA653UL PROJECTOR + NP41ZL Lens Professional Laser Projector

NEC NP-PA653UL + NP41ZL Lens Professional Laser Projector Features:

  • 4K Ready – Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
  • Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
  • TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
  • Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software
  • High performance video processing/scaling creates life-like images
  • Integrated software applications such as Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
  • 6500-lumen brightness enhances images for most applications
Add to Wishlist loading
Add to quote
Categories: , ,

Description

NEC NP-PA653UL PROJECTOR + NP41ZL Lens Professional Laser Projector Description

NEC NP-PA653UL PROJECTOR + NP41ZL Lens Professional Laser Projector with advanced professional installation features for higher education and corporate users. The newly developed sealed optical engine creates a filter/maintenance free projector. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge blending and stacking. The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.

Specifications:

Display

Aspect Ratio 16×10 Native Resolution WUXGA 1920 x 1200
Maximum Resolution 4K 4096 x 2160 Contrast Ratio (typical) 2,500,000:1 with light adjust

Synchronization Range

Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz Vertical Analog: 48-120Hz, Digital: 24-120Hz

Signal Compatibility/Connectivity

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, DDC/CI, USB
Input Terminals

RGB1(analog):
VGA 15-pin D-sub
RGB2(digital):
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB3(digital):
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB4(digital):
DisplayPort w/HDCP (V1.4)
RGB5(digital):
HDBaseT w/HDCP (V1.4/2.2)
Audio 1:
Stereo Mini Jack
 Output Terminals

Audioout:
Stereo Mini Jack
Monitor Out:
HDBaseT w/HDCP (V1.4/2.2)

Power Consumption (typical)

On 672W / 437W / 0.64W / 0.11W Input Current 10.2A – 4.5A
Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)

Product:
22.8 x 19.4 x 8.2 in. / 580 x 494 x 208mm
 Weight

Net Weight:
40.1 lbs. / 18.2 kg

Environmental Conditions

Operating Temperature 41-104°F / 5-40°C Storage -14-122°F / -10-50°C

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.

Additional Features

  • 4K Ready
  • Powered Lenses
  • Manual Keystone Correction
  • 3D Stereo
  • Geometric Correction
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • Edge Blending
  • Stacking
  • Virtual Remote
  • DisplayNote
  • NaViSet Administrator 2
  • Quick power-off
  • Picture-in-Picture
  • Advanced AccuBlend
  • AutoSense

Optical

Display Technology 0.76″ LCD w/ MLA Light Output(Lumens) 6500normal
Lamp Life (up to) 20,000 hours Screen Size (diagonal) 50 to 500 in. / 1.27 to 12.7m, NP40ZL, NP41ZL, NP43ZL
Throw Ratio 0.79 – 1.11 Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide Lens

Zoom:
Variable
Focus:
Power
F number, fnumber:
Variable
Keystone Correction +/- 40° horizontal, +/- 40° vertical

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 39 dB normal / 33 dB eco
Regulations USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) Optional Lenses NP40ZL, NP41ZL, NP43ZL

Light Output

6500normal

Fan Noise

39 dB normal / 33 dB eco

NEC NP-PA653UL PROJECTOR + NP41ZL Lens Professional Laser Projector Catalog
