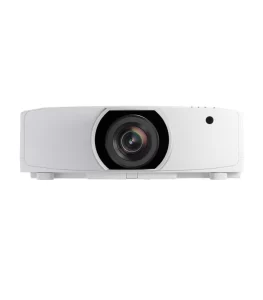

NEC NP-PA903X + NP13ZL Lens Professional Installation Projector

NEC NP-PA903X + NP13ZL Lens Professional Installation Projector

NEC NP-PA903X + NP13ZL Lens Professional Installation Projector

NEC NP-PA903X + NP13ZL Lens Professional Installation Projector features:

  • 4K Ready
  • Powered Lenses
  • Manual Keystone Correction
  • 3D Stereo
  • Geometric Correction
  • 10,000 hour Filter Life
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • Edge Blending
  • Stacking
  • Virtual Remote
  • DisplayNote
  • NaViSet Administrator 2
  • Quick power-off
  • Picture-in-Picture
  • Advanced AccuBlend
  • AutoSense

Download Catalog PDF Click here>

Add to Wishlist loading
Add to quote
Categories: , ,

Description

NEC NP PA903X PROFESSIONAL PROJECTOR WITH LENS DESCRIPTION

NEC’s PA903X is a 9000 lumen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBase T loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.

Display

Aspect Ratio 4×3 Native Resolution XGA 1024 x 768
Maximum Resolution 4K 4096 x 2160 Contrast Ratio (typical) 10,000:1 with auto iris

Synchronization Range

Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz Vertical Analog: 48-120Hz, Digital: 24-120Hz

Signal Compatibility/Connectivity

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, HDBaseT, DDC/CI, USB
Input Terminals

RGB1(analog):
VGA 15-pin D-sub
RGB2(digital):
HDMI w/HDCP (V2.2)
RGB3(digital):
HDMI w/HDCP (V2.2)
RGB4(digital):
DisplayPort w/HDCP (V1.4)
RGB5(digital):
HDBaseT w/HDCP (V2.2)
Audio 1:
Stereo Mini Jack
 Output Terminals

Audioout:
Stereo Mini Jack
Monitor Out:
HDBaseT

Power Consumption (typical)

On 566W / 390W / 0.7W / 0.3W Input Current 6.2-3.1A
Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)

Product:
19.8 x 16.2 x 6.6 in. / 503 x 411 x 168mm
 Weight

Net Weight:
22.5 lbs. / 10.2 kg

Environmental Conditions

Operating Temperature 41-104°F / 5-40°C Storage -14-122°F / -10-50°C

Limited Warranty (parts & labor)

Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. One year on lamp.

Additional Features

  • 4K Ready
  • Powered Lenses
  • Manual Keystone Correction
  • 3D Stereo
  • Geometric Correction
  • 10,000 hour Filter Life
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • Edge Blending
  • Stacking
  • Virtual Remote
  • DisplayNote
  • NaViSet Administrator 2
  • Quick power-off
  • Picture-in-Picture
  • Advanced AccuBlend
  • AutoSense

Optical

Display Technology 0.76″ LCD w/ MLA Light Output(Lumens) 9000normal
Lamp Type 420W AC Lamp Life (up to) 3000 hours normal / 5000 hours eco
Screen Size (diagonal) 40 to 500 in. / 1.02 to 12.7m Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide Lens

Zoom:
Variable
Focus:
Power
F number, fnumber:
Variable
Keystone Correction +/- 40° horizontal, +/- 30° vertical

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 39 dB normal / 33 dB eco
Regulations USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) Optional Lenses NP11FL, NP12ZL, NP13ZL, NP14ZL, NP30ZL, NP40ZL, NP41ZL, NP42ZL

Light Output

9000normal

Fan Noise

39 dB normal / 33 dB eco
