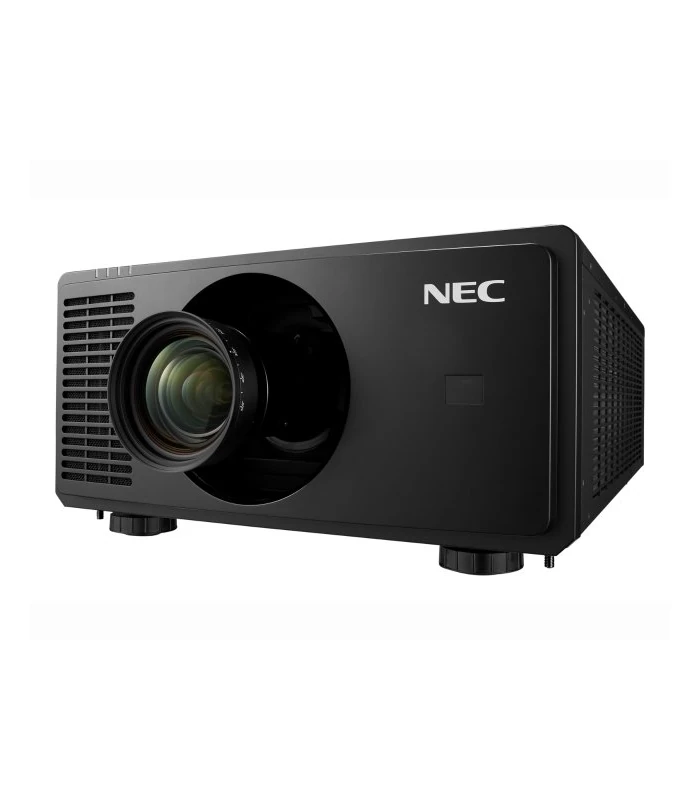

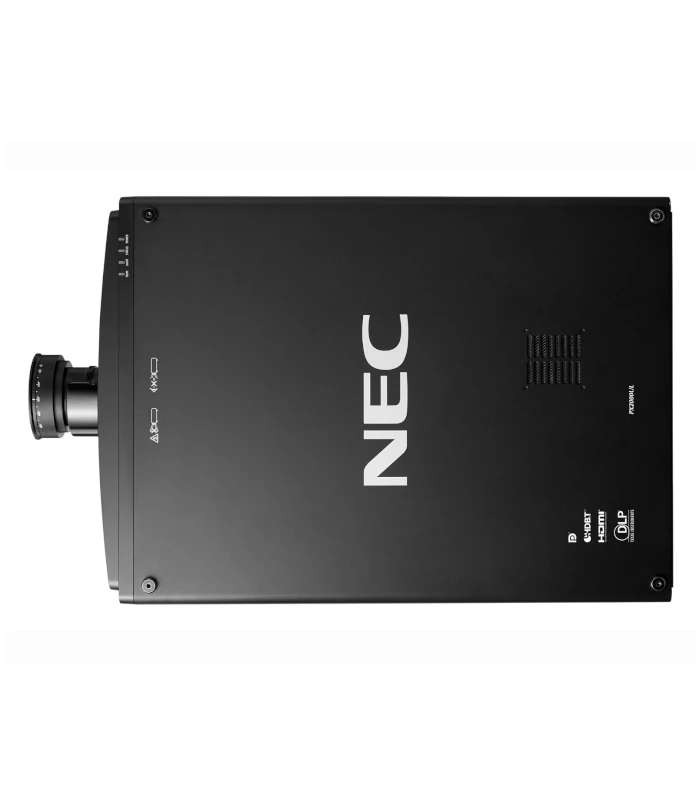

Nec PX2000UL Laser Projector 20000 Lumen

NEC PX2000UL Laser Projector

Type DLP
Brightness [AL] 20000
Resolution 1920 x 1200
Light Source Laser
Light Source Life [h] 20000
Weight [kg] 51
Order Code 60004511



Download Catalog PDF Click here>

SKU: PX2000UL Projector Categories: , Tags: , ,

Description

Nec PX2000UL Laser Projector 20000 Lumen Impressive pictures at high brightness

Experiencing an attractive price/performance ratio and low maintenance, the single chip 20,000 lumen laser projector delivers large venue projection at near 3-chip imaging performance. Producing richly intense colours powered by additional red laser technology, far beyond that previously possible with 1-chip DLP technology, the PX2000UL achieves a wide colour spectrum covering REC709 standard.

The filter-free sealed optical system means no dust can impact the Constant Light Output ensuring impressive longevity and minimal maintenance. Combined with its low fan noise, light weight for easy handling and outstanding installation and setup features, this innovative projector targets applications in Higher Education, retail, transportation (rail stations), museums and amusements parks where large scale high bright imaging must be achieved to a budget.

Benefits

  • Superb imaging quality – the RB laser technology uses red lasers, increasing the colour gamut to produce more vivid images, unprecedented for single chip DLP projectors, with high light levels supported by a special Brightness Boost Mode.
  • Maintenance-free performance – the filter-free laser projector uses a special NEC phosphor wheel requiring minimal attention during its lifetime beyond its initial setup.
  • Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
  • Easy handling – its light weight construction (51kg) and robust design means this model is semi-portable making it suitable for flexible applications.
  • Projection Technology 1-chip DLP™ Technology
    Native Resolution
    1920 x 1200 (WUXGA)
    Aspect Ratio 16:10
    Contrast Ratio 1 10000:1 with DynamicBlack™
    Brightness 1 18000 Normal / 14400 Eco ANSI Lumen; 19000 Centre Lumen
    Brightness (Boost Mode) 19000 ANSI Lumen; 20000 Centre Lumen
    Lamp Laser Light Source
    Light Source Life [hrs] 20000 2
    Lens 5 optional bayonet lenses
    Lens shift H:-15,+15, V:-50,+50
    Keystone correction +/- 60° manual horizontal / +/- 40° manual vertical
    Projection Factor depending on lens selection
    Projection Distance [m] 0.81 – 84
    Screen Size (diagonal) [cm] / [inch] Maximum: 1,270 / 500″; Minimum: 100 / 40″
    Zoom Motorized
    Focus Adjustment Motorized
    Supported Resolutions
    1080i/50/60;1080p/24/25/30/50/60;2560 x 1600 (WQXGA);480i/50;480p/60;576i/50;576p/50;720p/50;720p/60

    CONNECTIVITY

    RGB (analog) Input: 1 x 5BNC; 1 x Mini D-sub 15 pin
    Output: 1 x Mini D-sub 15 pin
    Digital Input: 1 x 3G-SDI; 1 x DisplayPort supporting HDCP; 1 x DVI-D; 1 x HDBaseT; 2 x HDMI™ supporting HDCP
    Output: 1 x 3G-SDI
    Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
    LAN 1 x RJ45
    3D Sync Output: 1 x BNC IN; 1 x BNC OUT
    Video Signals NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

    REMOTE CONTROL

    Input: 1 x 3.5 mm Stereo Mini Jack
    Output: 2 x 3.5 mm Stereo Mini Jack for Screen Trigger
    Remote Control Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Geometric Correction; Help-function; Input Control; Keystone Correction; Magnify-function; On Screen On/Off Selection; Picture Adjust; Power (On-OFF); Select (up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection

    ELECTRICAL

    Power Supply 200-240 V AC; 50 – 60 Hz
    Power Consumption [W] 1779 Normal Mode

    MECHANICAL

    Dimensions (W x H x D) [mm] 530 x 248 x 745 (without lens and feet)
    Weight [kg] 51
    Fan Noise [dB (A)] 43 / 45 (Eco / Normal)
    Colour Versions Black

    ENVIRONMENTAL CONDITIONS

    Operating Temperature [°C] 0 to 40
    Operating Humidity [%] 0 to 80

    ERGONOMICS

    Safety and Ergonomics CE; EAC; ErP; RoHS

    ADDITIONAL FEATURES

    Special Characteristics 3D ready; DICOM simulation; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; LAN; Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; PJ LINK; Portrait Setting; RS-232 Control

    GREEN FEATURES

    Energy Efficiency Laser Light Source
    Ecological Materials 100% recyclable packaging; Downloadable manuals
    Ecological Standards ErP compliant
    Light Source 3 years or 10000h (whatever comes first)

    SHIPPING CONTENT

    Shipping Contents IR Remote Control (RD – 465E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM

    OPTIONAL ACCESSORIES

    Optional Accessories XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)
    Lenses NP45ZL (0.9-1.2:1); NP46ZL (1.2-1.56:1); NP47ZL (1.5-2:1); NP48ZL (2-4:1); NP49ZL (4-7:1)
