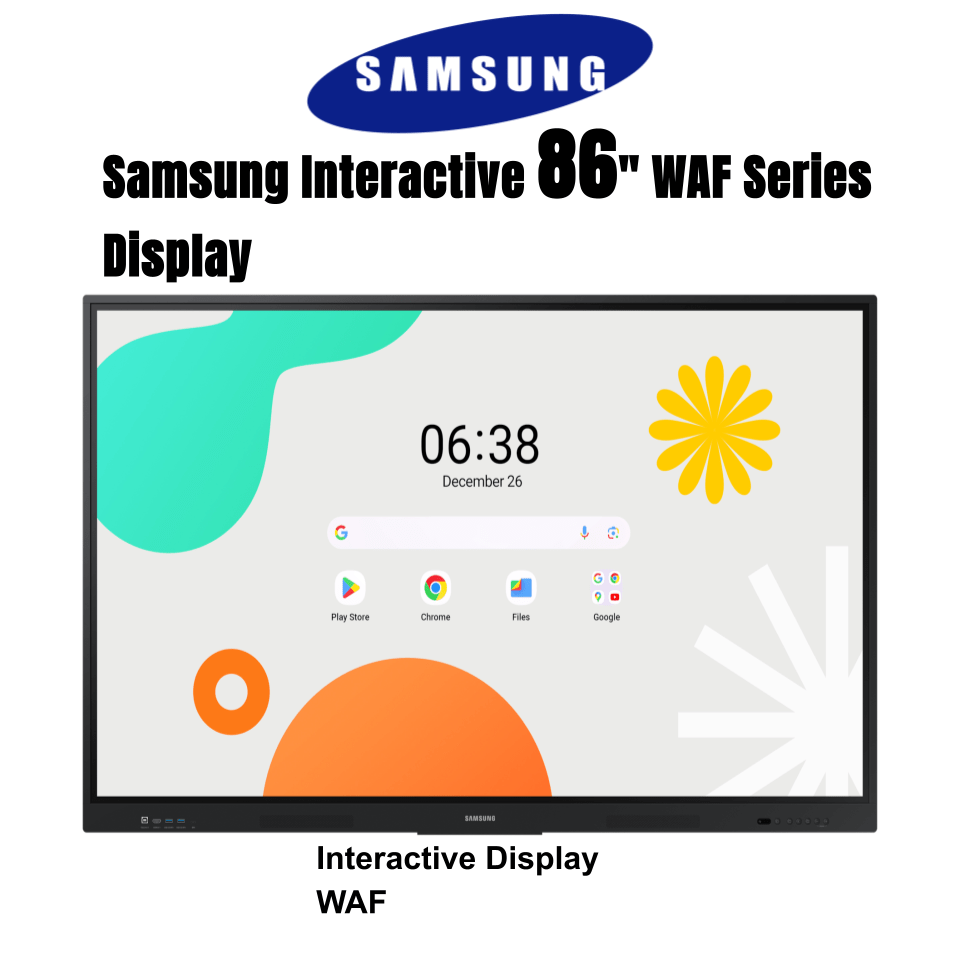

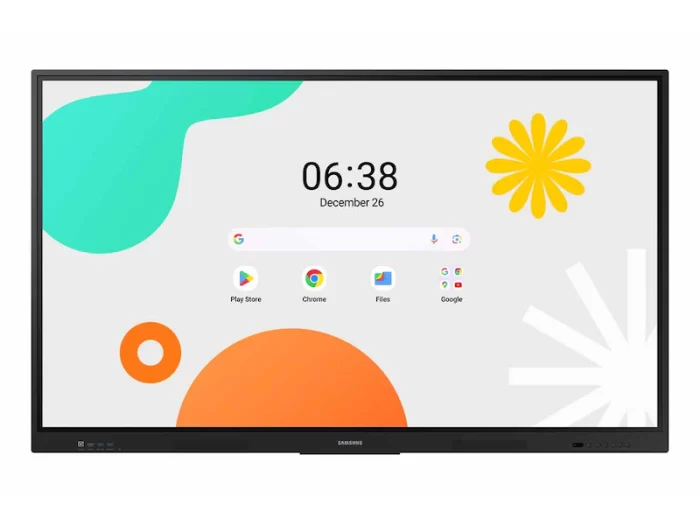

Samsung Interactive 86″ WAF Series Display
Ask for more info
- Samsung’s 86″ Interactive Display WAF series powered by Android™ OS 14 enhances education with its easily-customizable home screen
- Compatible with other Android™ devices, display offers familiarity with standard functions
- EDLA-certified WAF series supports Google Play, YouTube, and other Google services
- OPS slot transforms the display into a Windows device when needed
Description
The Samsung Interactive Display WAF Series 86″ is a powerful, large-format collaboration solution designed for education, business, and creative environments. Featuring an expansive 86-inch 4K UHD screen with vibrant clarity and wide viewing angles, it supports up to 40 simultaneous touch points, allowing multiple users to write, draw, and interact at once. Powered by an EDLA-certified Android platform, it provides seamless access to Google Play, YouTube, Chrome, Google Drive, and Classroom for enhanced productivity. Dual-sided passive pens enable quick color changes, while the wireless mirroring feature supports up to nine connected devices for engaging, interactive sessions. With built-in annotation tools, split-screen and multi-window modes, OPS slot for Windows PC integration, and enterprise-grade device management, the Samsung WAF 86″ offers unmatched versatility. Its rugged construction, TÜV-certified eye care, and robust connectivity ensure reliable, long-term performance in any collaborative space.
Samsung interactive Display
Key Features
-
Android-based & EDLA-certified — full access to Google Play, YouTube, Chrome, Drive, Classroom for a seamless collaborative experience
-
86″ 4K UHD (3840×2160) IPS LCD, direct LED backlight, 60 Hz refresh rate, 400 cd/m² brightness
-
Up to 40-point IR multi-touch with ≤10 ms response — ideal for group interaction
-
Dual-sided passive pens — front/back nib for seamless color switching
-
Wireless mirroring — up to nine devices (iOS, Android, Windows, macOS, ChromeOS)
-
Built-in annotation tools, split/multi-window modes and HDMI Out for versatile usage
-
OPS slot — add an optional Windows module to turn it into a full PC
-
USB‑C port (65 W) — supports screen mirroring, touch, and device charging
-
Enterprise-grade device management — 1-year free cloud DMS, on‑premise option, advanced messaging across classrooms
-
Eye-care features — TÜV-certified for low blue light, flicker-free, anti-glare
-
Rugged design — glass fuse, 500 V surge protection, anti-humidity glue for durability
📊 Detailed Specifications
| Category | Specification |
|---|---|
| Panel | 86″ IPS LCD, Direct LED, 60 Hz, 400 cd/m² brightness, 1200:1 contrast (dynamic up to 6500:1), 178° viewing angle, 8 ms response |
| Resolution | 3840 × 2160 (4K UHD) |
| Touch | IR, 40-point, ≤10 ms response, ≤45 ms latency |
| Processor & Memory | Quad-core (A55 ×4), 8 GB RAM, 64 GB storage on Android 14 |
| Audio | Stereo speakers 15 W ×2 |
| Connectivity | 3× HDMI In, 1× HDMI Out, USB‑C (65 W), 1× USB 2.0, 4× USB 3.0, LAN (1 Gbps), Wi‑Fi 6, Bluetooth, RS‑232 in/out, audio in/out |
| OPS Slot | Supports Windows OPS module |
| Power | AC100–240 V, typical ~486 W, standby ≤0.5 W |
| Dimensions | 1957 × 1160 × 99 mm (set); packaged: 2110 × 1283 × 225 mm |
| Weight | Set: 56.5 kg; packaged: ~74 kg |
| VESA | 800 × 600 mm |
| Operating Conditions | 0–40 °C, 10–90 % humidity |
| Certifications | EDLA, TUV low-blue-light/flicker-free, HDCP 2.1, IEC 62368‑1, UL, EMC Class A, WPA2‑Enterprise |
