ViewSonic LS700HD 3,500 Lumens Laser Projector

ViewSonic LS700HD 3,500 Lumens Laser Projector

  • Lamp-free Laser Phosphor technology
  • Notch Filter technology to provide better colour performance
  • 20,000 hours life span
  • Ultra-high Contrast
  • H/V Keystone & 4 corner adjustment

Download Catalog PDF Click here<

Description

ViewSonic LS700HD 3,500 Lumens Laser Projector

The ViewSonic® LS700HD is a lamp-free 1080p laser home projector featuring 3,500 ANSI lumens high brightness and cinematic colour for you to set up your big screen experience in a bright living room or in your home theater. Thanks to laser phosphor technology, this projector offers up to 20,000 hours long life span and makes lamp replacement a thing of the past. Featuring 3X fast input, 3D Blu-ray capability, and a pre-set movie mode that uses Notch Filter technology, the LS700HD delivers an immersive big screen experience for playing games, watching movies or any kind of entertaining content.

2nd Generation Laser Phosphor Technology

This new ViewSonic laser projector adopts 2nd generation laser phosphor technology. In addition to inheriting excellent colour performance, lamp-free design, and its instant on/off switch from the previous generation, technology on the new generation improves brightness by around 20%, offers better heat-resistance, and has a smaller module design. These improvements make projected images more consistent in ambient settings as well as increase reliability with a more compact size for extended use in various scenarios.

2nd Gen. Laser Phosphor Technology

Bright and Rich Color

Featuring ViewSonic’s proprietary Notch Filter technology*, this projector ensures better optimised colour performance than other high brightness projectors, without compromising quality.
*Notch Filter technology is active when choosing movie mode.

Notch Filter technology

20,000 Hours Lifespan

The laser light source offers 20,000 hours of maintenance-free operation in Eco Mode, meaning that the LS700HD could be used 4 hours a day for more than 13 years with no degradation in brightness.

20,000 hours

Ultra-high Contrast

A 3,000,000:1 ultra-high contrast ratio enhances even the finest shades of grey – a key characteristic for delivering excellent clarity and detail for razor-sharp images.

3,000,000:1contrast ratio

H/V Keystone & 4 Corner Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone

Bright Images Every Time

Images on the LS700HD look bright under any lighting conditions. Thanks to a high brightness of 3,500 ANSI Lumens your images won’t get washed out when watching movies or playing games during the day or with the lights on.

3,500 ANSI Lumens

Fine Detail and Clarity

Full HD 1080p (1920 x 1080) resolution depicts subtle details clearly so you can easily distinguish different elements of the content on your screen.

Full HD 1080p

SuperColor™: Best in Class Colour Accuracy

ViewSonic’s proprietary SuperColor™ Technology offers a wider colour range, ensuring users enjoy true-to-life colour projection in both bright and dark environments.

SuperColor™Technology

Immersive 3D Viewing

The LS700HD can project 3D content directly from 3D Blu-ray players and HDMI-enabled devices such as laptops, tablets, and media players via HDMI connection.

3D

LAN Control

IT administrators can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. As the LS700HD projector is Crestron® and AMX®certified, administrators can control and monitor the projector for any size campus or enterprise.

In addition, ViewSonic vController management software provides effortless maintenance and intuitive interfaces for remote management.

vController

360-degree Projection

A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or mount the projector upside-down at a 45-degree angle if needs be.

360-degree

Portrait Projection

Portrait mode adds more applications for projection mapping, staging, and advertising.

Portrait Projection

Enhanced Gaming Experience

3X fast input allows you to deliver attacks right when you want to without delay*, giving you a competitive advantage when gaming and taking the experience to the next level.
*Video latency is measured via lag metering. Video lag recorded on HV-keystone projectors is approximately 48ms. Enabling 3X Fast Input on HV-keystone projectors reduces video lag to 16.4ms. All recorded benchmarks are based on the ViewSonic PJD7720HD projector. Results may vary across different projector makes and models.

3X Fast Input

Instant Activation Upon Signal Detection

The LS700HD laser projection turns on and off instantly without the warm up or cool down period required by conventional lamp projectors. Restarting an unresponsive projector can be done in seconds, cutting down teachers’ downtime during lectures.

  • Signal Power On: Power on automatically upon detection of a VGA or HDMI cable connection.
  • Direct Power On: Connect the power cord to begin; the projector will power on all on its own once the cord is connected.
Auto Power On

Advanced dust-proof projector with IP5X

ViewSonic adopts the latest laser dust-proof technology to enhance reliability and protect the projector from dust damage with IP5X Certification.

IP5X

Presentation Timer

The Presentation Timer is an embedded on-screen timer that can be used as an excellent time management tool for helping presentations run on schedule.

Presentation Timer

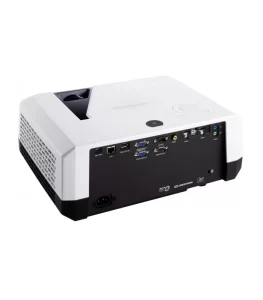

Exterior & Rear I/O Connectors

  1. Power Key/Top IR
  2. LED indicator
  3. Keypad
  4. Front IR
  5. Zoom/Focus
  6. Lens
  7. Computer In
  8. USB 5V/1.5A OUT
  9. LAN
  10. Mini USB
  11. Monitor out
  12. RS-232
  13. Video
  14. HDMI
  15. Audio in/out
  16. Kensington Lock
  • Native Resolution: 1920×1080
    DMD Type: DC3
    Brightness: 3500 ANSI Lumens
    Contrast Ratio with SuperEco Mode: 3000000:1
    Display Colour: 1.07 Billion Colours
    Light Source Type: Laser Phosphor system
    Light Source Life (Normal): up to 20000
    Light Source Life (SuperEco): up to 20000
    Lamp Watt: Nichia MCD
    Lens: F=1.9-2.49, f=12-15.6mm
    Projection Offset: 100%+/-5%
    Throw Ratio: 1.13~1.47
    Image Size: 60″ – 300″
    Throw Distance: 1.5-8.79m(100″@2.5m)
    Keystone: H:+/-40° , V:+/-40°
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x ~ 2.0x
    Audible Noise (Normal): 34dB
    Audible Noise (Eco): 32dB
    Input Lag: 16ms (TBD)
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • Input
    Computer in (share with component): 2
    Composite: 1
    Audio-in (3.5mm): 1
    HDMI: 2
    (HDMI 1.4a/HDCP1.4 x2)
  • Output
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/ 1.5A)
