ZU1100 -11500 Lumens WUXGA Leser Projector

Ask for more info

High brightness WUXGA DLP laser projector –11,500 lumens
DuraCore laser technology – Up to 30,000 hourslaser light source
Dust resistant – Independently tested, IP6Xcertified for total reliability
Installation flexibility – 7 interchangeable lensoptions including an ultra short throw lens

Download Catalog PDF Click here>

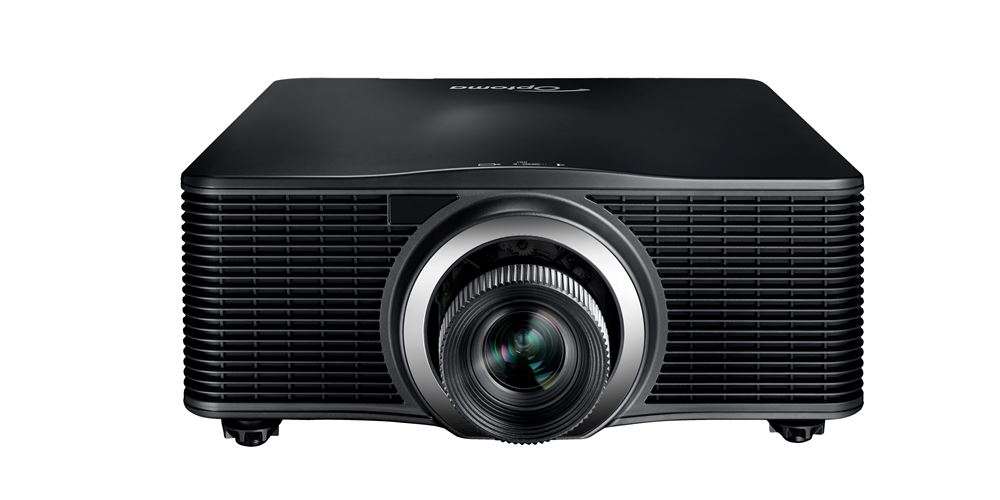

ZU1100 -High brightness WUXGA DLP laser projector

Spectacular image quality, low maintenance and ultimate reliability

The ZU1100 offers enhanced features such as built-in edge-blending and warping and 4K HDR compatibility. Part of the DuraCore laser lineup, it combines a longer-lifetime light source and an independent IP-rated dust certification for ultimate peace of mind. DLP Leser Projector Delivering up to an astonishing 30,000 hours, this DLP Leser Projector achieves superior colour rendition producing visually striking lifelike images with exceptional detail.

Designed for even the most complex professional installations, the ZU1100 offers seven interchangeable lens options including an ultra short throw lens for ultimate flexibility.

The ZU1100 offers portrait and 360-degree orientation support. Additionally, an HDBaseT™ input is included to simplify cabling requirements and reduce installation complexity, saving time and reducing costs.

DLP laser projecto

High brightness WUXGA DLP laser projector 11,500 lumens

DuraCore laser technology Up to 30,000 hours laser light source

Dust resistant Independently tested, IP6X certified for total reliability

Installation flexibility 7 interchangeable lens options including an ultra short throw lens

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

*Compatible multi output graphics card with overlap function is required.

DLP Leser Projector

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.

DLP Leser Projector

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

DLP Leser Projector

Amazing colour

Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Colour Management System (CMS)

Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings of your projector for optimal precision.

Brightness matching

A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine tuned to give the same brightness levels; important, especially when side by side.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life – or anywhere inbetween

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

DLP Leser Projector

Extreme Black

Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

Full lens shift

Full lens shift makes installation simple and hassle free, offering the flexibility to move the projected image vertically or horizontally, as well as adjusting the screen size without the need to move or reposition the projector.

Picture by picture picture-in-picture

Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

360 projection*

With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Portrait projection

Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

Customise your projector

Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information

DLP Leser Projector

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible Allows for easy installation with Extron control systems

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

Specification

Show all Hide all

Display/image

Display technology	DLP™
Resolution	WUXGA (1920×1200)
Brightness	11,500 lumens
ANSI brightness	9,600
Contrast ratio	2,000,000:1
Native aspect ratio	16:10
Aspect ratio – compatible	4:3,16:9,16:10
Keystone correction – horizontal	+/-20°
Keystone correction – vertical	+/-20°
Uniformity	90%
Screen size	Dependent on lens

Lamp info

Light source type	Laser
LASER life	30,000 hours

Optical

Throw ratio	Dependent on lens
Projection distance (m)	Dependent on lens
Lens options	BX-CTA16- 0.36 ~ 0.36 BX-CTA17- 0.65~0.75 BX-CTA15- 0.75 ~ 0.95 BX-CTA01- 0.95 ~ 1.22 BX-CTA06- 1.22 ~ 1.52 BX-CTA03- 1.52 ~ 2.92 BX-CTA13- 2.90 ~ 5.50
Lens shift	Yes – {{downloads_link}}

Connectivity

Connections

Inputs 2 x HDMI 2.0, 1 x 3D sync, 1 x DVI-D, 1 x HDBaseT, 1 x 3G-SDI, 1 x 12V trigger

Outputs 1 x 3D sync, 1 x HDMI, 1 x USB-A power 2A

Control 1 x RS232, 1 x Wired remote, 1 x RJ45

General

Noise level (min)	38dB
Noise level (max)	40dB
PC compatibility	HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
2D compatibility	PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
3D compatibility	Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D	Full 3D
Security	Security bar, Kensington Lock
IP rating	IP6X
OSD / display languages	11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
24/7 operation	Yes
360° operation	Yes
Operating conditions	5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%
Remote control	Wired ProAV remote
In the box	AAA Battery, AC power cable 3M, Lens cover, Quick start guide
Optional wireless models	QuickCast Bundle, QuickCast starter kit

Networking

LAN

Yes

Power

Power supply	100 – 240V, 50 – 60Hz
Power consumption (standby)	0.5W
Power consumption (min)	360W
Power consumption (max)	680W

Weight and dimensions

Dimensions (W x D x H) mm	484 x 529 x 207.8
Net weight	21 kg

Download Catalog PDF Click here>
