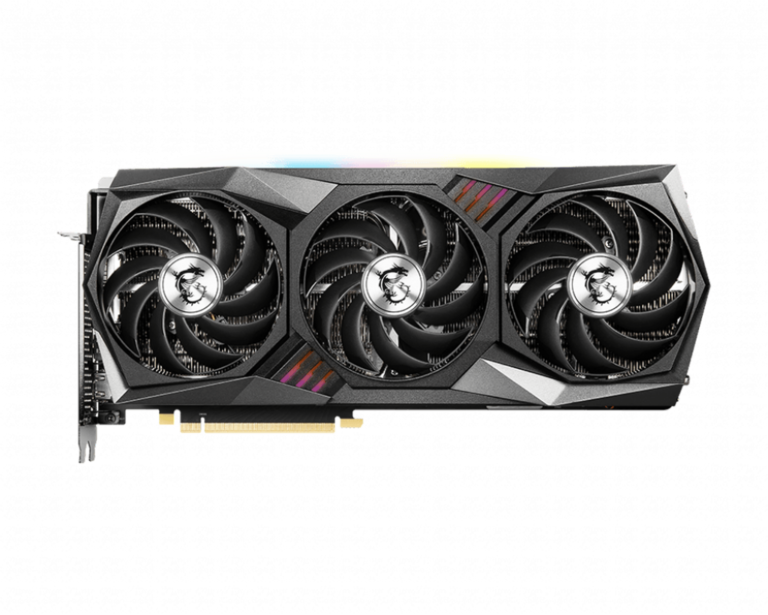

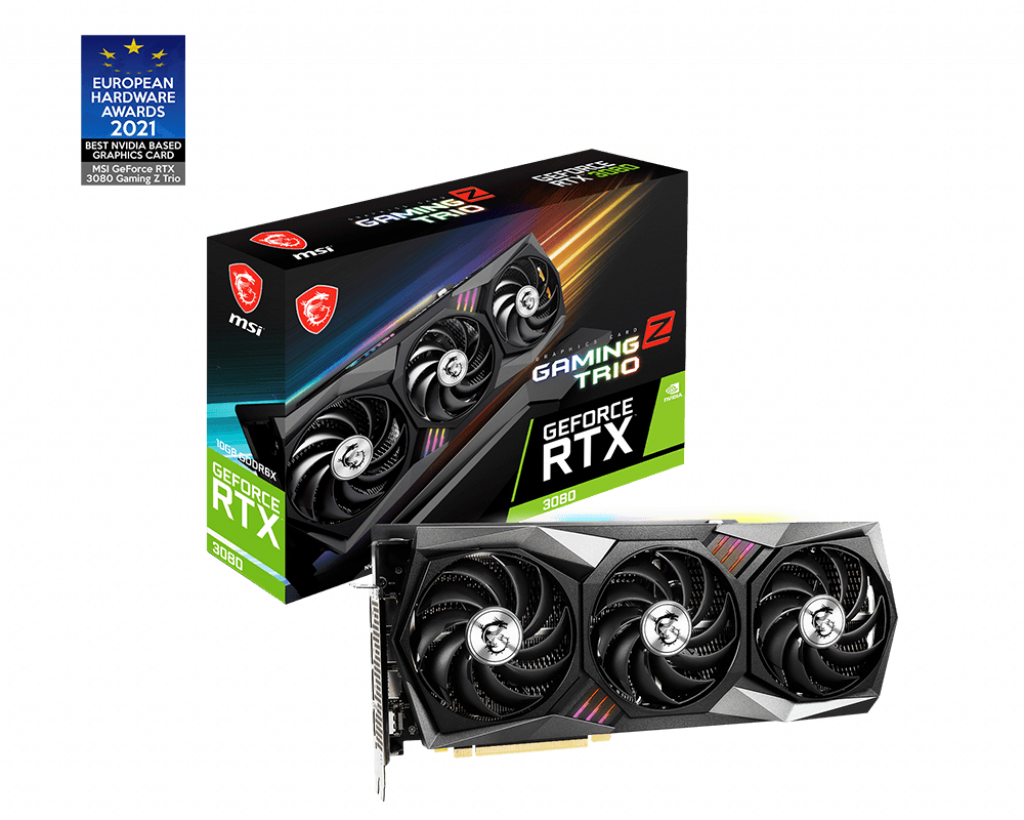

MSI GeForce RTX 3080 GAMING Z TRIO 10G Graphic Card

The GeForce RTX™ 3080 delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.

Boost Clock / Memory Speed

• 1830 MHz / 19 Gbps
• 10GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

TRI FROZR 2 Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

• Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Model Name                                GeForce RTX™ 3080 GAMING Z TRIO 10G
Graphics Processing Unit         NVIDIA® GeForce RTX™ 3080
Interface                                       PCI Express® Gen 4
Cores                                             8704 Units
Core Clocks                                  Boost: 1830 MHz
Memory Speed                            19 Gbps
Memory                                        10GB GDDR6X
Memory Bus                                320-bit
Output                                          DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP Support                            Y
Power consumption                   370 W
Power connectors                       8-pin x 3
Recommended PSU                   750 W
Card Dimension (mm)              323 x 140 x 56mm
Weight (Card / Package)          1537 g / 2342 g
DirectX Version Support          12 API
OpenGL Version Support         4.6
Maximum Displays                     4
VR Ready                                       Y
G-SYNC® technology                 Y
Adaptive Vertical Sync                Y
Digital Maximum Resolution    7680×4320
