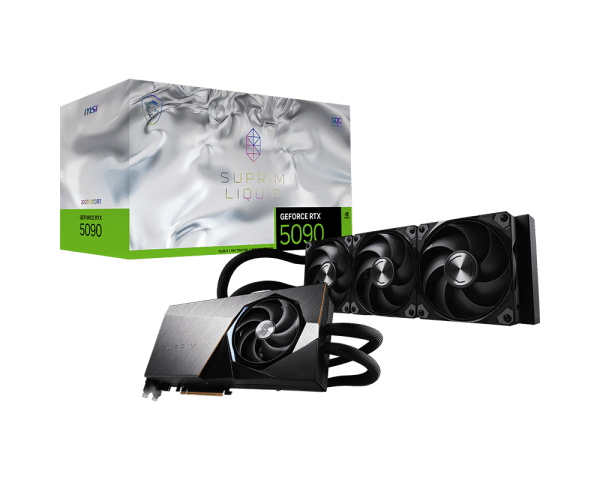

MSI GeForce RTX 5090 32G SUPRIM LIQUID SOC

The MSI GeForce RTX 5090 32G SUPRIM LIQUID SOC is a high-performance graphics card designed for enthusiasts seeking top-tier gaming and creative capabilities. It leverages NVIDIA’s Blackwell architecture to deliver exceptional performance and features a sophisticated hybrid cooling graphics card system for optimal thermal management.​

graphics card

? Key Specifications

• GPU Architecture: NVIDIA Blackwell

• CUDA Cores: 21,760

• Memory: 32GB GDDR7

• Memory Interface: 512-bit

• Core Clocks:

  • Gaming Mode: Extreme Performance: 2580 MHz, Boost: 2565 MHz

  • Silent Mode: Extreme Performance: 2527 MHz, Boost: 2512 MHz

• Memory Speed: 28 Gbps

• Power Consumption:

  • Gaming Mode: 600 W

  • Silent Mode: 575 W

• Power Connector: 16-pin x 1

• Maximum System Power: 1000 W

• Display Outputs:

  • 3x DisplayPort 2.1b

  • 1x HDMI 2.1b (supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

• Maximum Resolution: 7680 x 4320 (8K)

• Form Factor:

  • Card Dimensions: 280 x 148 x 51 mm

  • Radiator Dimensions: 394 x 121 x 55 mm

  • Tube Length: 280 mm

• Weight:

  • Graphics Card: 2969 g

  • Total (with Radiator): 4273 g

• Cooling System: Hybrid design combining air and liquid cooling with a 360 mm aluminum radiator and STORMFORCE fans

• Software Support:

  • MSI Center

  • Afterburner

  • MSI App Player

  • Norton Game Optimizer​

? Design & Build

The SUPRIM LIQUID SOC graphics card features a premium design with diamond-cut lines, brushed textures, and beveled edges. Its metal backplate includes airflow vents and thermal pads to enhance cooling. The card also offers refined LED illumination and a dual BIOS switch for performance or silent operation modes.​

? Cooling System

MSI’s innovative hybrid cooling graphics card system combines air and liquid cooling to effectively manage heat from the GPU and VRAM. The 360 mm aluminum radiator, equipped with STORMFORCE fans, maximizes airflow to expel excess heat, ensuring enhanced performance and peak system efficiency. The patented water block design features a special waterway that cools both the GPU and VRAM, helping to lower temperatures. Additionally, automotive-grade coolant circulates through the tubing to the radiator, keeping the SUPRIM LIQUID cool and operating at peak efficiency, even under the heaviest workloads.​
