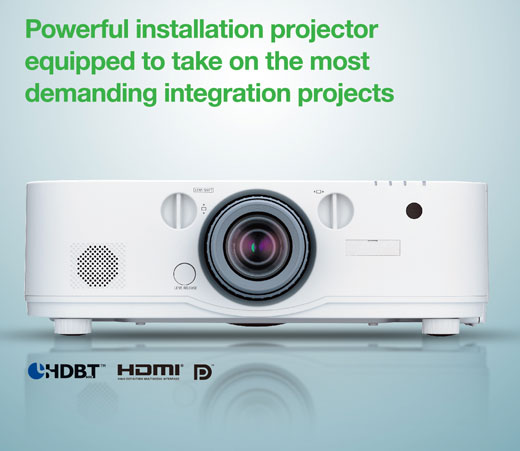

NEC NP-12ZL OPTION FOR PA SERIES ZOOM LENS PROJECTOR
High-performance video processing/scaling, utilizing the
Hollywood Quality Video processor, is designed for computer
signals as well as standard or high-definition video. The
technology produces superior video processing using pixelbased, motion-adaptive de-interlacing to remove undesirable
motion artifacts typical of interlaced signals. This processing
creates life-like images in applications such as video
conferencing.
• Bright enough for most applications: 6000 lumens (PA600X),
5500 lumens (PA550W), 5000 lumens (PA500U and PA500X)
Description
Integrated RJ45 connection for quick connection to the LAN
(10/100 base-T capability)
• Optional high-speed wireless LAN IEEE 802.11b/g/n
• Desktop control allows you to securely transmit information
wirelessly to the projector from a docking station or PC in another
room
• Image Express Utility (IEU 2.0; compatible with Windows
or Mac operating systems) dedicated projector software
provides wired and wireless data transmission via peer-to-peer
or over the network
• Broadcast mode allows you to send information from one
computer to several projectors
• Windows Network Projector function within Windows Vista
connects directly to networked projectors without the need for
additional proprietary software
• Windows Remote Desktop function allows you to control a
networked computer by connecting a USB mouse and keyboard
directly to the projector’s USB input
• Windows Network Drive Function displays multimedia files
(.jpeg, .bmp, .png, .mpeg2 or .wmv9) in the Windows shared
folder on a local network using the Viewer function—all without
bringing your PC into the conference room
• Windows Media Connection Function displays multimedia files
(.mpeg2, .jpeg or .wmv9) stored on the Windows Media Connect
server or a local network using the Viewer function—all without
bringing your PC into the conference room
• Crestron Roomview Connected™
SECURITY FEATURES PROVIDE PEACE OF MIND
• Cabinet control lock setting enables user to deactivate buttons
on cabinet to prevent unwanted changes to projector settings
• Logo lock restricts changes to logo saved in projector memory
• Password protection restricts unauthorized use of projector
• Email notification informs the system administrator when the
lamp approaches the end of its useful life
| Model | NP11FL | NP30ZL | NP12ZL | NP13ZL | NP14ZL | NP15ZL | |
|---|---|---|---|---|---|---|---|
| Option lens |  |
 |
 |
 |
 |
 |
|
| Lens type | Fixed Short Throw Lens |
ZoomLens | |||||
| Zoom/Focus | Manual (Focus only) |
Manual | |||||
| Zoom ratio | – | 1.3 | 1.3 | 2.0 | 1.6 | 1.52 | |
| Throw ratio *1 | 0.8:1 | 0.81-1.06:1 | 1.19-1.56:1 | 1.50-3.02:1 | 2.97-4.79:1 | 4.70-7.20:1 | |
| Screen size (inches) | 40-150 | 52-500 | 30-500 | 40-500 | 60-500 | 60-500 | |
| Light output *2 |
PA722X | 5400 lumens |
6800 lumens |
5600 lumens |
7200 lumens |
5800 lumens |
5600 lumens |
| PA622X | 4600 lumens |
5900 lumens |
4800 lumens |
6200 lumens |
5000 lumens |
4800 lumens |
|
| PA672W | 4700 lumens |
6400 lumens |
5000 lumens |
6700 lumens |
5100 lumens |
5000 lumens |
|
| PA572W | 4000 lumens |
5400 lumens |
4200 lumens |
5700 lumens |
4300 lumens |
4200 lumens |
|
| PA622U | 4200 lumens |
5900 lumens |
4600 lumens |
6200 lumens |
4700 lumens |
4600 lumens |
|
| PA522U | 3500 lumens |
4900 lumens |
3800 lumens |
5200 lumens |
4000 lumens |
3800 lumens |
|
| Weight | 1.2 kg | 1.2 kg | 1.2 kg | 0.84 kg | 1.0 kg | 1.0 kg | |
- *1Value with XGA.
- *2Brightness value when the lamp mode is set to “ECO OFF Mode” and the preset mode is “High-bright mode”.
Lens shift function for easily adjusting the position of the projected image
The projector is equipped with a lens shift that allows you to adjust the projected image horizontally or vertically. You can easily adjust the position of the projection just by turning the lens shift dials, without having to move the projector unit itself. Furthermore, the projector is also equipped with a centre lens design for easy alignment.
- *The lens shift mechanism does not work when using NP11FL.
- *As you maximise the tilt direction of the lens shift, the area surrounding the screen may get darker and shadows may appear.
