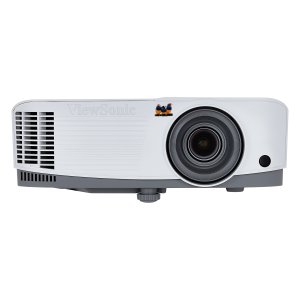

ViewSonic PA503W WXGA Projector

ViewSonic PA503W WXGA Projector Features:

  • 22,000:1 contrast ratio
  •  SuperColor™ technology
  •  5 colour modes
  •  Auto power off
  •  Vertical keystone

Description

ViewSonic PA503W WXGA Projector Description

ViewSonic PA503W WXGA Projector offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3600 ANSI Lumens of brightness and a 22,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor™ technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503W reduces power consumption and extends the lamp life by up to 15,000 hours.

Specifications:

DISPLAY

TYPE

DLP Lamp

RESOLUTION TYPE

WXGA (1280×800)

RESOLUTION

1280 x 800

BRIGHTNESS (LUMENS)

3,600 ANSI

DISPLAY SIZE (IN.)

30 – 300 in. / 0.76 – 7.62 m

THROW DISTANCE

3.28 – 36.02 ft / .99 – 10.98 m

THROW RATIO

1.55~1.70

KEYSTONE

Vertical (+/- 40°)

LENS

1.1x optical zoom

LIGHT SOURCE (WATT)

200

LIGHT SOURCE LIFE, NORMAL (HOURS)

5000

LIGHT SOURCE LIFE, DYNAMIC ECO-MODE (HOURS)

15000

COLOR DEPTH

1.07B Color (R/G/B 10bit)

DYNAMIC CONTRAST RATIO

22,000:1

ASPECT RATIO

16:10

VIDEO SIGNAL

FREQUENCY HORIZONTAL

15K~102KHz

FREQUENCY VERTICAL

23~120MHz

COMPATIBILITY

PC RESOLUTION (MAX)

VGA(640 x 480) to FullHD(1920 x 1080)

MAC® RESOLUTION (MAX)

VGA(640 x 480) to FullHD(1920 x 1080)

CONNECTOR

3.5MM AUDIO OUT

1

3.5MM AUDIO IN

1

CONTROL (RS232)

1

HDMI

1

VGA IN

2

VGA OUT

1

COMPOSITE RCA VIDEO IN

1

MINI USB

1

AUDIO

INTERNAL SPEAKERS

2W (x1)

POWER

VOLTAGE

100-240V+/- 10%, 50/60Hz AC

CONSUMPTION (TYPICAL)

260W

STAND-BY

<0.5W

OPERATING CONDITIONS

TEMPERATURE

32-104º F (0 – 40º C)

WEIGHT (IMPERIAL)

NET (LBS)

4.9

GROSS (LBS)

7.1

ViewSonic PA503W WXGA Projector Catalog
