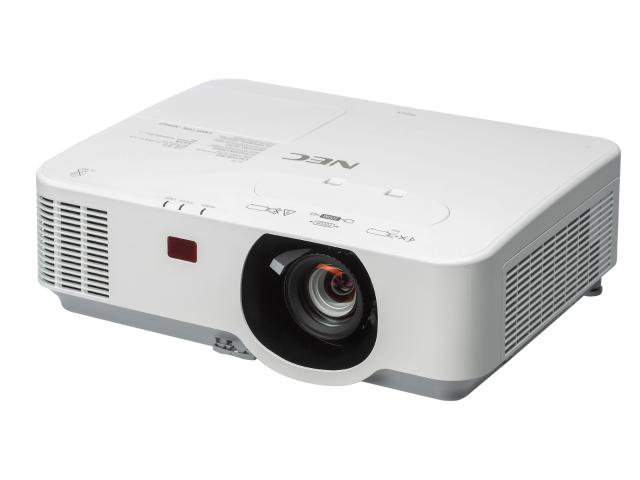

NEC NP-P605UL 6,000 Lumen Laser Projector

NEC NP-P605UL 6,000 Lumen Laser Projector Features:

  • 4K Ready
  • Manual keystone correction
  • Wireless LAN
  • USB Viewer
  • Auto power on
  • ECO Mode technology
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Picture-in-Picture
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

Description

NEC NP-P605UL 6,000 Lumen Laser Projector Description

NEC NP-P605UL 6,000 Lumen Laser Projector combines advanced features at a budget conscious price making it ideal for higher education classrooms and corporate conference rooms. With 6000 lumens, WUXGA resolution and improved color fidelity the P Series delivers impressive images in demanding applications. Installation flexibility is achieved with lens shift, HDBaseT, a broad 1.6x zoom lens and tilt free capability. The 20,000 hour laser life and NEC’s sealed optical engine creates a maintenance free projection solution.

Specifications:

Display

Aspect Ratio 16×10 Native Resolution WUXGA 1920×1200
Maximum Resolution Up to 4K@30Hz (3840×2160) with Advanced AccuBlend Contrast Ratio (typical) 600,000:1 with Light Adjust

Synchronization Range

Horizontal (Analog/Digital) 15 to 100KHz (RGB: 24kHz or over) Vertical 50-120 Hz

Signal Compatibility/Connectivity

Supported Video Standards NTSC3.58/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM SD/HD Video Signal Compatibility 4K, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility VGA, SVGA, XGA, WXGA, Quad-VGA, SXGA, SXGA+, WXGA+, WXGA++, WSXGA+, WUXGA Macintosh Signal Compatibility Yes
External Control RS-232 (D-Sub 9pin), IR, RJ45 Input Terminals

RGB1(analog):
VGA 15-pin D-sub
RGB2(digital):
HDMI w/ HDCP (v1.4)
RGB3(digital):
HDMI w/ HDCP (v1.4)
RGB4(digital):
HDBaseT
Audio 1:
Stereo Mini Jack
Output Terminals

Audio:
Stero Mini Jack
Audioout:
Stereo Mini Jack (variable)

Power Consumption (typical)

On 367W / 261W / 1.4W / 0.13W Input Current 5.5A – 2.3A
Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)

Product:
18.9 x 16.0 x 5.6 in. (480 x 407 x 142.5 mm)
Shipping:
23.3 x 19.3 x 10.2 in. (591 x 491 x 259 mm)
Weight

Net Weight:
21.4 lbs. (9.7 kg)
Shipping:
28.2 lbs. (12.8 kg)

Environmental Conditions

Operating Temperature 41-104°F / 5-40°C Storage 14° – 122°F / -10° – 50°C

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.

Additional Features

  • 4K Ready
  • Manual keystone correction
  • Wireless LAN
  • USB Viewer
  • Auto power on
  • ECO Mode technology
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Picture-in-Picture
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

Optical

Display Technology 0.64″ LCD w/ MLA Light Output(Lumens) 6000 lumens
Lamp Type Laser/Phosphor Light Source Life 20,000 hours
Screen Size (diagonal) 25 – 300 in. / 0.6 – 7.6m Throw Ratio 1.23-2.0:1
Projection Distance 2.6 – 44.3 ft. / 0.8 – 13.5m Projector Angle 0 – 10.8° tele / 0 – 17.0° wide
Lens

Zoom:
1.6x
Focus:
Manual
F number, fnumber:
F=1.5~2.1 / f=17.2~27.6mm
Keystone Correction +/- 30° horizontal, +/- 30° vertical

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 28dB (HIGH BRIGHT) / 25dB (OTHERS) / 19dB (ECO)
Regulations UL60950-1:2nd edition,2014, UL62368-1:2nd Edition, FDA, Proposition65, TPCH, CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)

NEC NP-P605UL 6,000 Lumen Laser Projector Catalog
