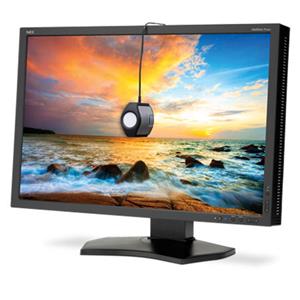

NEC MultiSync P242W 24″ IPS LED Desktop Monitor

  • AH-IPS LCD panel with 99.6% coverage of sRGB color space
  • Superior screen performance (1000:1 contrast ratio, 1920 x 1200 native resolution, 350 cd/m² brightness)
  • Supports internal programmable 14-bit 3D lookup tables (LUTs) for calibration
  • 3-port USB hub with DisplaySync ProTM controls two computers with only one keyboard and mouse
  • Five programmable Picture Mode profiles for quick access to multiple color spaces

Description

Display

Panel Technology IPS Viewable Image Size 24.1 “
Aspect Ratio 16:10 Native Resolution 1920×1200
Pixel Pitch 0.27 mm Pixels Per Inch 93 @ native resolution
Backlight Type W-LED Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1 Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (typical) 8 ms Displayable Colors 16.7 million out of 1.05 billion
Lookup Table 14-bit (3D) Color Gamut

Adobe RGB Coverage/Size:
78.4% / 81.0%
NTSC Coverage/Size:
75.2% / 77.4%
sRGB Coverage/Size:
99.6% / 109.3%

Synchronization Range

Horizontal (Analog/Digital) 31.5 kHz-93.8 kHz and 118.4 kHz / 31.5-91.1 kHz and 118.4 kHz Vertical 50-85 Hz

Signal Compatibility/Connectivity

DisplayPort, DVI-D, HDMI, VGA 15-pin D-sub, USB hub (2 up/ 3 down) with DisplaySync Pro Input Terminals

Connectors:
DisplayPort, DVI-D, HDMI, VGA 15-pin D-sub, USB hub (2 up/ 3 down) with DisplaySync Pro

Power Consumption (typical)

On 29.5W Power Savings Mode 0.2 W

Physical Specifications

Dimensions (WxHxD)

With stand:
21.9 x 14.9-20.8 x 9 in. / 556.8 x 378-528 x 227.6mm
Without stand:
21.9 x 14.3 x 3.3 in. / 556.8 x 362.4 x 85 mm
Weight

Net Weight (with stand):
22.5 lbs. / 10.2 kg
Net Weight (without stand):
15 lbs. / 6.8 kg.
VESA Hole Configuration 100 x 100mm

Environmental Conditions

Operating Temperature 41-95°F / 5-35°C Operating Humidity 20-80%
Operating Altitude 16400 ft. / 5000m Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85% Storage Altitude 40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR 6.0 RoHS Yes

Limited Warranty (parts & labor)

4 years with 48 hour advanced exchange

Additional Features

  • ECO Mode
  • Carbon footprint meter
  • Tilt
  • Swivel
  • Pivot
  • Height-adjustable stand
  • Quick release stand
  • Carrying handle
  • Rapid Response
  • XtraView+
  • OSD user controls
  • NaViSet software
  • Cable management
  • Touch-integratable
  • VESA mount
  • HDCP
  • DDC/CI
  • No Touch Auto Adjust
  • 14-bit 3D LUT
  • Black Level adjustment
  • AmbiBright
  • CableComp
  • GammaComp MD QA software
  • SpectraView software-ready
